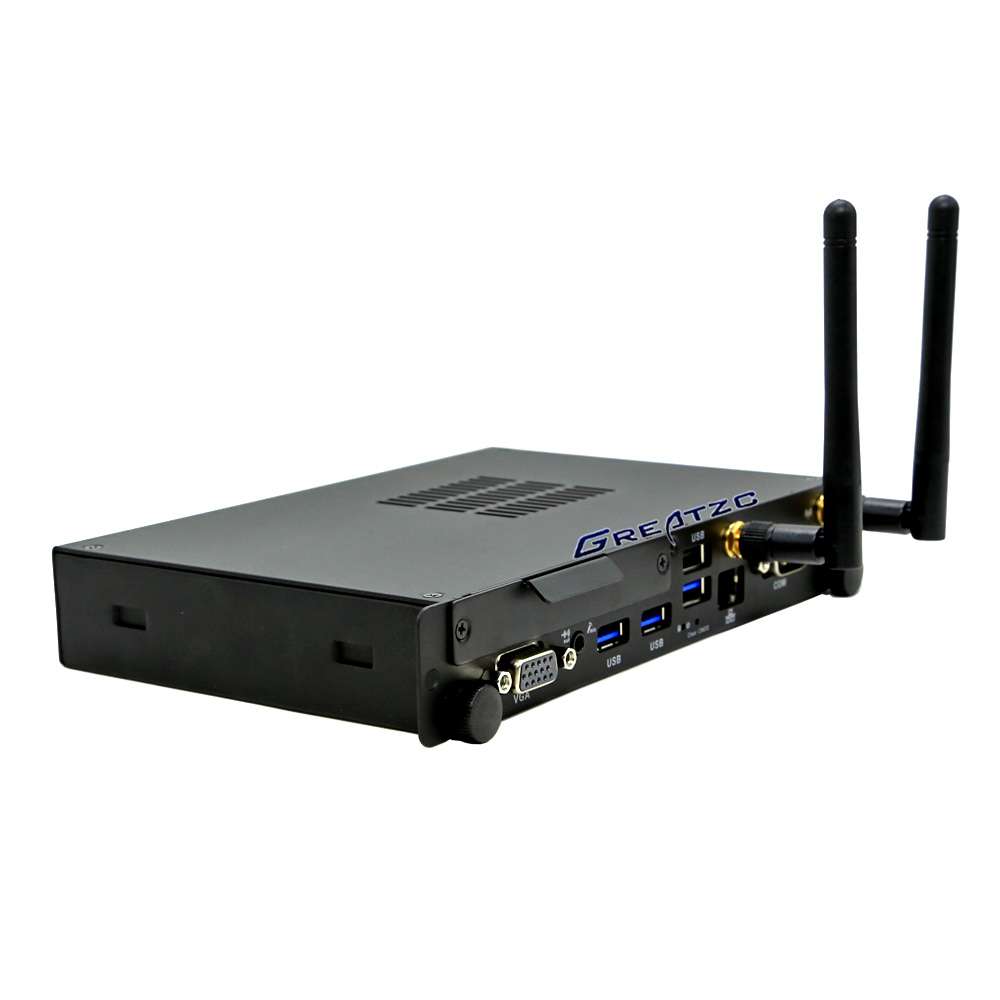

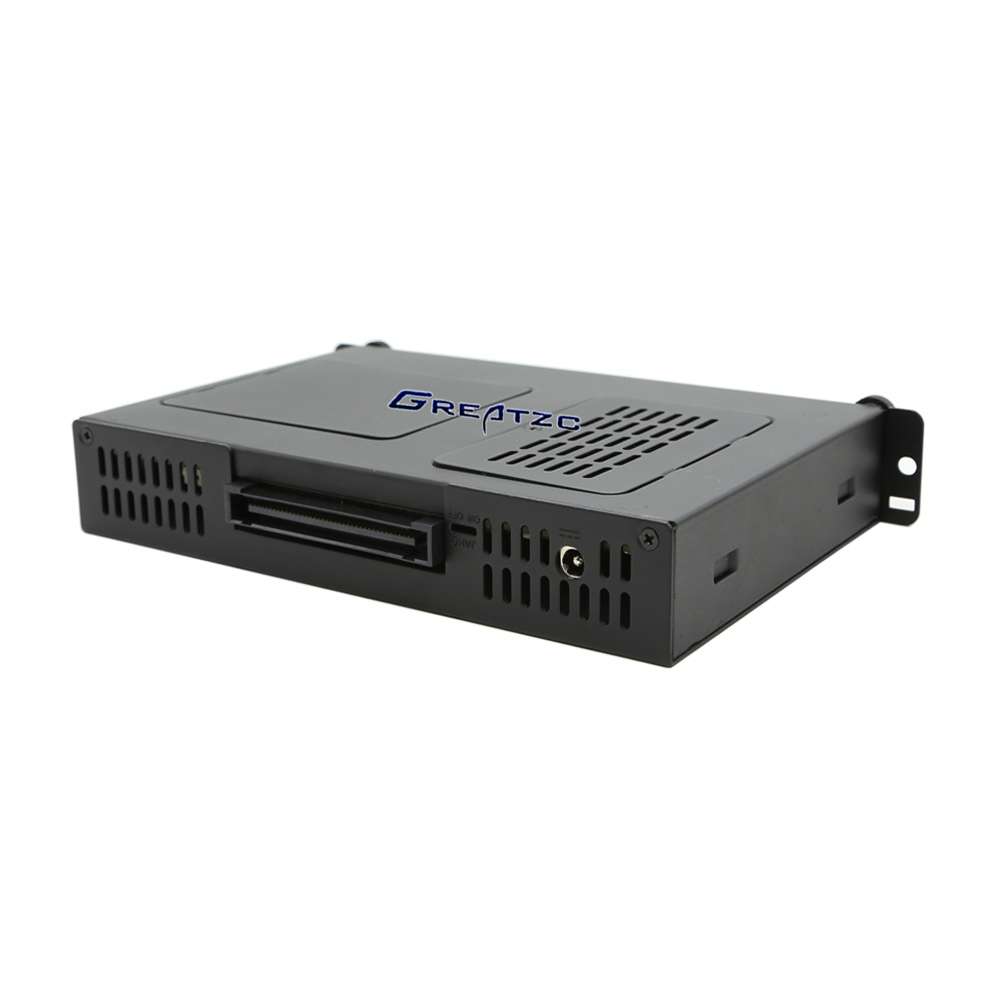

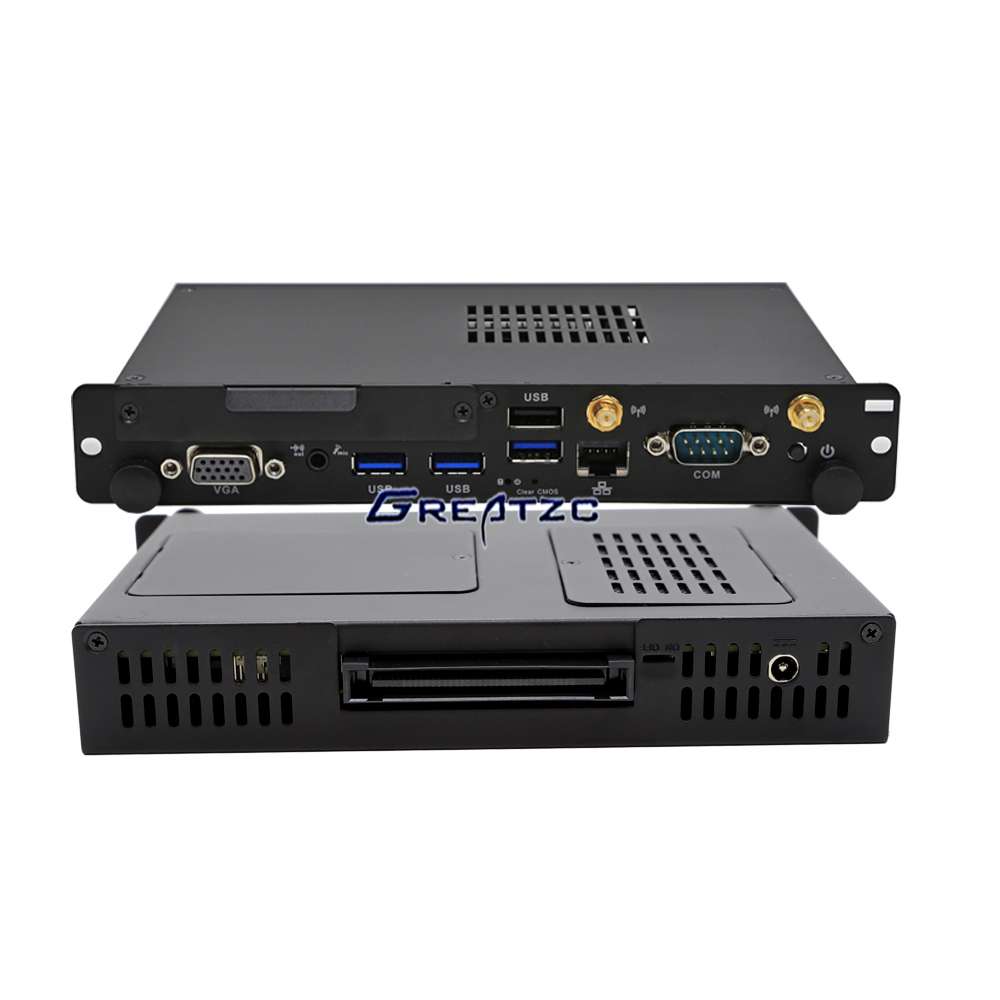

ZC-OPS7200 OPS PC With Core i5-7200u Support 4K

Category:OPS PC Module

Description:ZC-OPS7200 OPS Mini PC With 7th Gen Kaby lake I5-7200u Dual Core 4 Thread 2.5GHz Turbo Boost 3.1GHz,Intel HD 620 GPU,Support 4K,3*USB 3.0,1*USB 2.0 1*RJ45 Lan Port,1*OPS,1*VGA,DC12V-19V.

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-OPS7200 OPS Mini PC With 7th Gen Kaby lake I5-7200u Dual Core 4 Thread 2.5GHz

Turbo Boost 3.1GHz,Intel HD 620 GPU,Support 4K,3*USB 3.0,1*USB 2.0

1*RJ45 Lan Port,1*OPS,1*VGA,DC12V-19V.



Main Features:

1.Onboard CPU INTEL I5-7200u Dual Core 4 Thread 2.5GHz.

 Turbo Boost 3.1GHz,3MB L3 Cache TDP only 15W.

2.Standard OPS Frame,the Size is 200*119*30mm.

3.With Graphic Card:Intel HD520,Support 4K.

4.With MINI SATA and SATA,Support Both SSD and 2.5 inch HDD.

5.Onboard MINI PCIE and SIM Card Slot,Support WIFI/3G/4G Module.

6.Silent Fan,Low Noise,Excellent Heat Exchange.

7.Good Quality:All Solid Cap,With Stable and Reliable Performance.



ZC-OPS7200 OPS Mini PC Specification

CPU

7th Gen INTEL Kaby Lake I5-7200u

Dual Core 4 Thread 2.5GHz

Turbo Boost 3.1GHz

3MB L3 Cache

TDP only 15W

RAM

2*SO-DIMM DDR3L(1.35V) 1600MHz Memory

Max 16GB

Hard Drive Capacity

SATA 2.5 500GB,1TB

or mSATA SSD 16GB,32GB,64GB,128GB,256GB

Graphics Card

Intel HD 620

Support 4K

Network Card

1*Intel I219 Gigabit Network Card

WIFI Optional

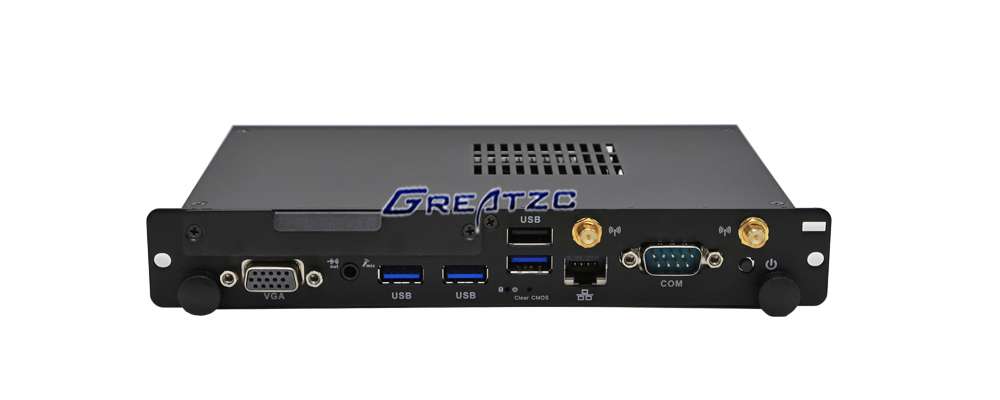

Outside I/O Ports

1*DC Port

1*VGA

1*OPS

3*USB 3.0

1*USB 2.0

1*RJ45

1*COM

1*Power Button

2*WIFI Antenna Ports

Internal I/O Port

1*SATA 3.0

1*MINI SATA 3.0,Support SSD

1*MINI PCIE(Support WIFI or 3G/4G Module)

Size

Product Size:200*119*30mm

Power Adapter

Input 100-240V(AC)

Output:12V-19V DC-IN

It is optional,Need Additional Cost
