  • ZC-OPS570 I5-3337u OPS PC Module

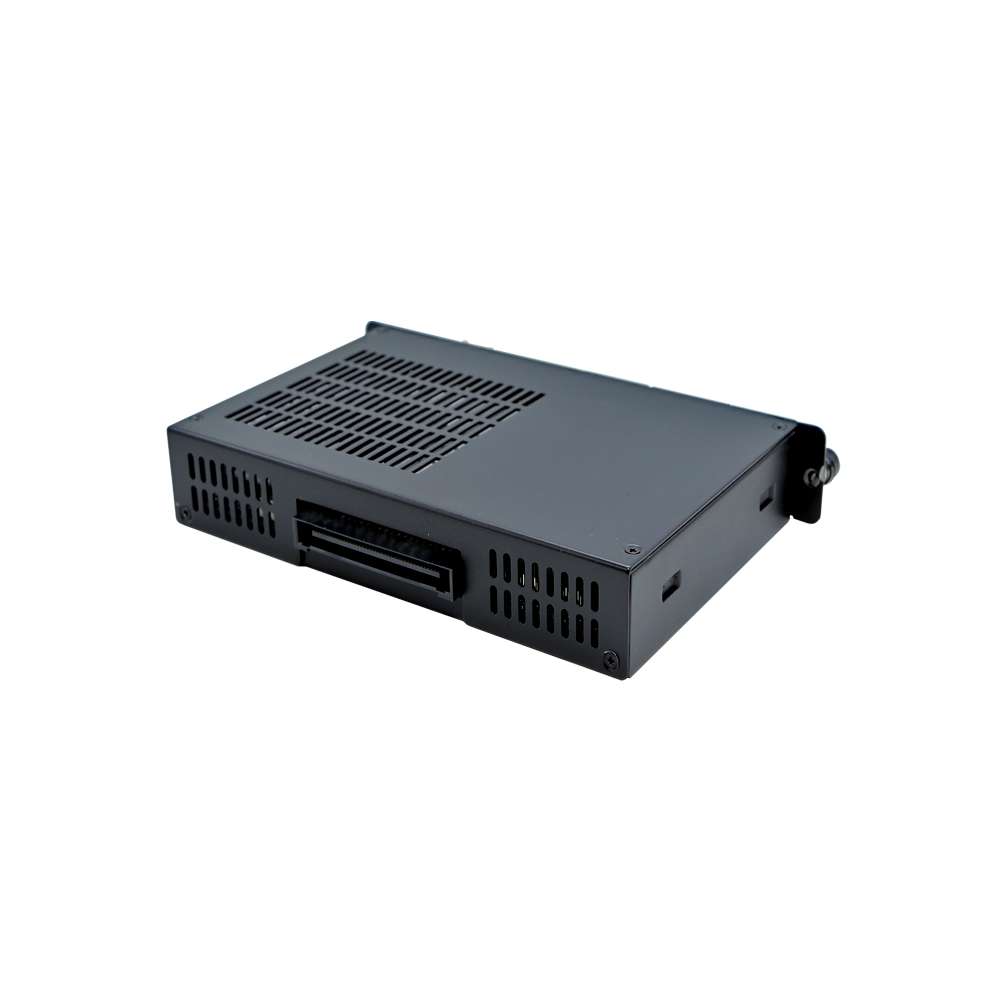

  • OPS570-1.jpg

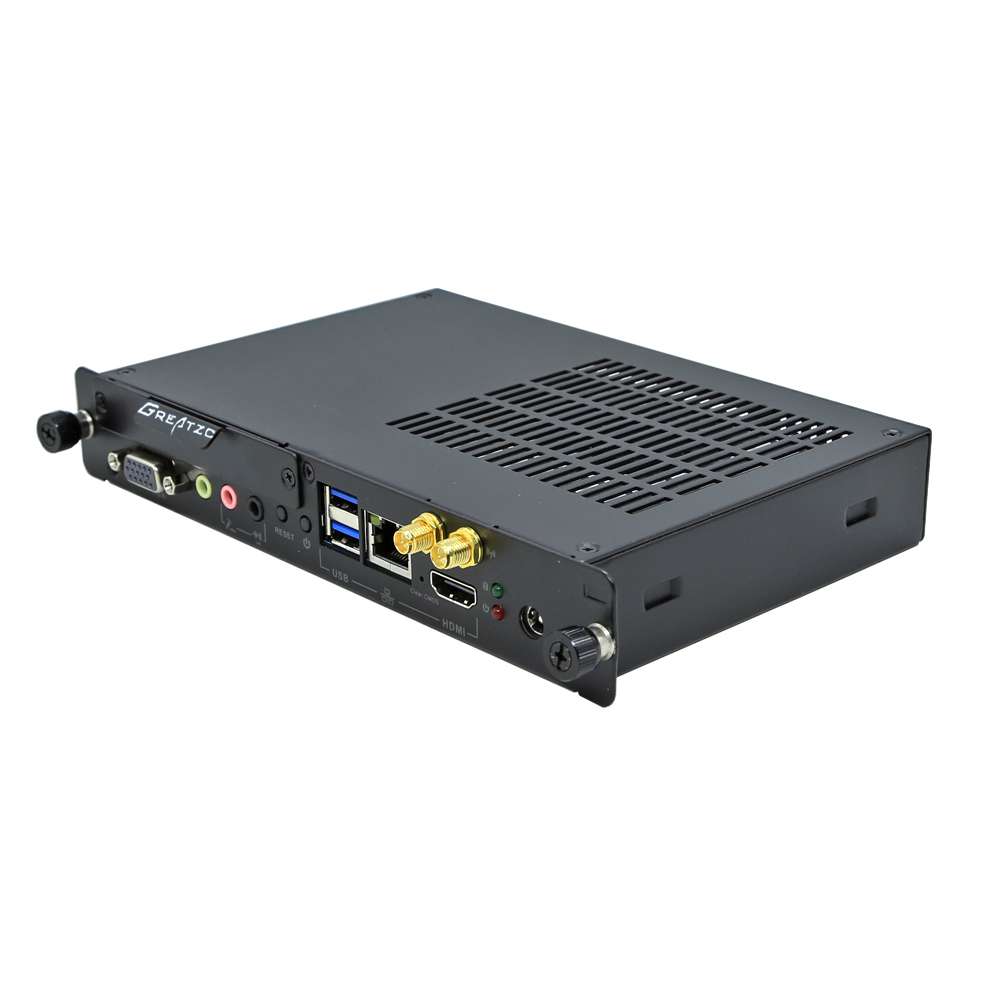

  • OPS570-2.jpg

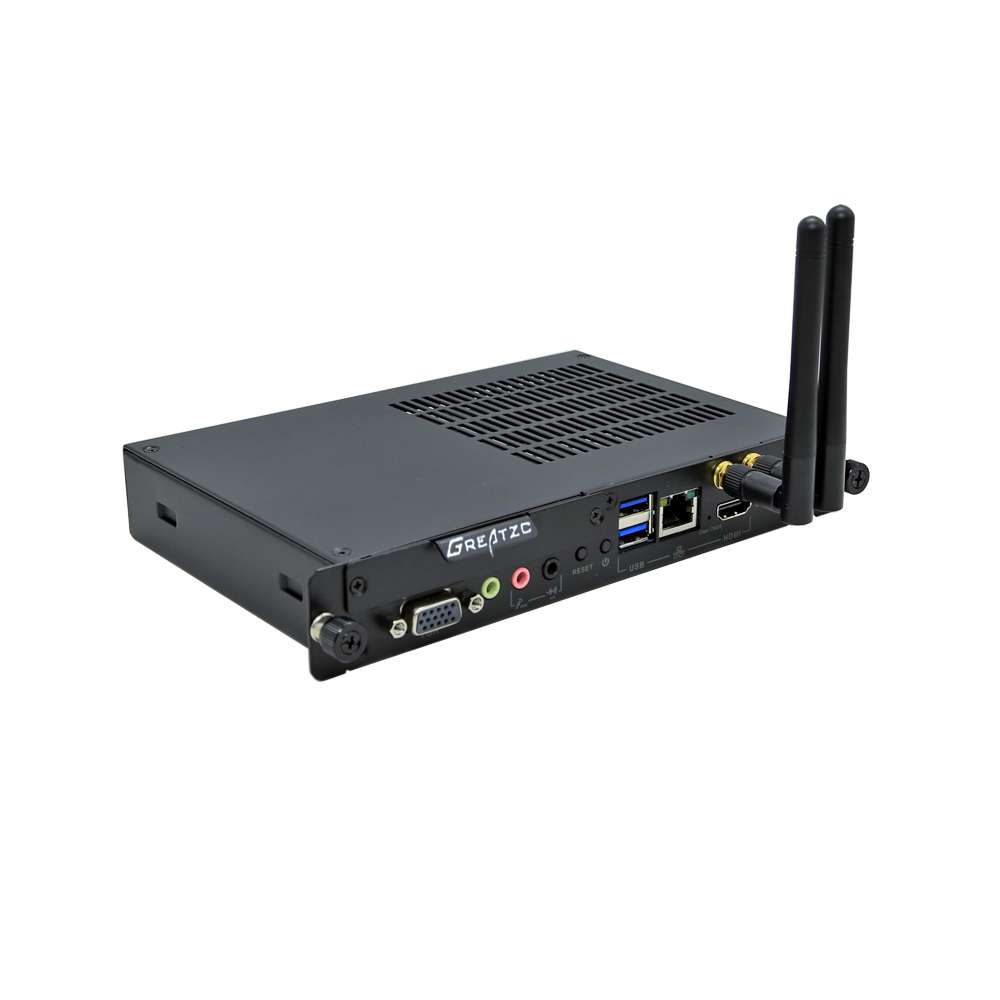

  • OPS570-4.jpg

ZC-OPS570 I5-3337u OPS PC Module

Category:OPS PC Module

Description:ZC-OPS570 OPS Mini PC With INTEL Ivy Bridge I5-3337U CPU Dual Core 1.80 GHz Intel HD 4000 GPU,Support 1080P Playing.With VGA,HDMI,Support Double Display 2*USB 3.0,1*MIC,1*SPK,1*RJ45 Lan Port,1*2.5inch HDD Push-Pull 2*WIFI Antenna Port,1*OPS Port

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-OPS570 OPS Mini PC With INTEL Ivy Bridge I5-3337U CPU Dual Core 1.80 GHz

Intel HD 4000 GPU,Support 1080P Playing.With VGA,HDMI,Support Double Display

2*USB 3.0,1*MIC,1*SPK,1*RJ45 Lan Port,1*2.5inch HDD Push-Pull

2*WIFI Antenna Port,1*OPS Port



Main Features:

1. Onboard CPU INTEL Ivy Bridge I5-3337U Dual Core 4 Thread 1.80GHz,

 Turbo Boost 2.7GHz 3MB L3 Cache TDP only 17W

2. Standard OPS Frame,the Size is 20*11.9*3CM.

3. With Graphic Card:Intel HD4000,Support 1080P Playing.

4. Double Display:With VGA and HDMI,Support Double Display.

5. With MINI SATA and SATA,Support Both SSD and 2.5 inch HDD,Great Storage.

6. Onboard MINI PCIE and SIM Card Slot,Support WIFI and 3G Module.

7. Can Built-in IR Module,Support IR Remote Control.

8. Silent Fan,Low Noise,Excellent Heat Exchange.

9. Good Quality:All Solid Cap,With Stable and Reliable Performance.

10. Built-in SATA Port, With 2.5inch HDD Push-Pull Ports,Very Convenient.


ZC-OPS570 Mini PC Specification

CPU

INTEL Ivy Bridge I5-3337U

Dual Core 4 Thread 1.80GHz

Turbo Boost 2.7GHz

3MB L3 Cache

TDP only 17W

RAM

1*DDR3 SO-DIMM 1600MHz Memory,Max 8GB

Hard Drive Capacity

SATA 2.5 inch250GB,320GB, 500GB,1TB

or mSATA SSD 8GB ,16GB,32GB,64GB Optional

Graphics Card

Intel HD 4000 ,650-1250MHz,

Support 1080P

Chipset

Intel HM77

Network Card

Intel 82579 Network Card

Storage

1*MINI SATA SSD

2*SATA 2.5 inch HDD

OUT I/O Port

1*DC Port

1*HDMI

1*VGA

2*USB 3.0

1*IR

1*RJ45

1*MIC

1*SPK

1*Power Button

1*Reset Button

1*HDD LED

1*Power LED

1*OPS Port

2*WIFI Antenna Port

1*2.5inch HDD Push-Pull

Internal I/O Port

1*12PINS VGA

1*RS232 PINS

1*IR Module Slot

1*SIM Card Slot

1*SO-DIMM Memory Slot

1*MINI SATA,Support SSD

1*MINI PCIE

Size

Product Size:200*119*30mm

Power Adapter

Input 100-240V(AC),

Output:12V/19V DC-IN
