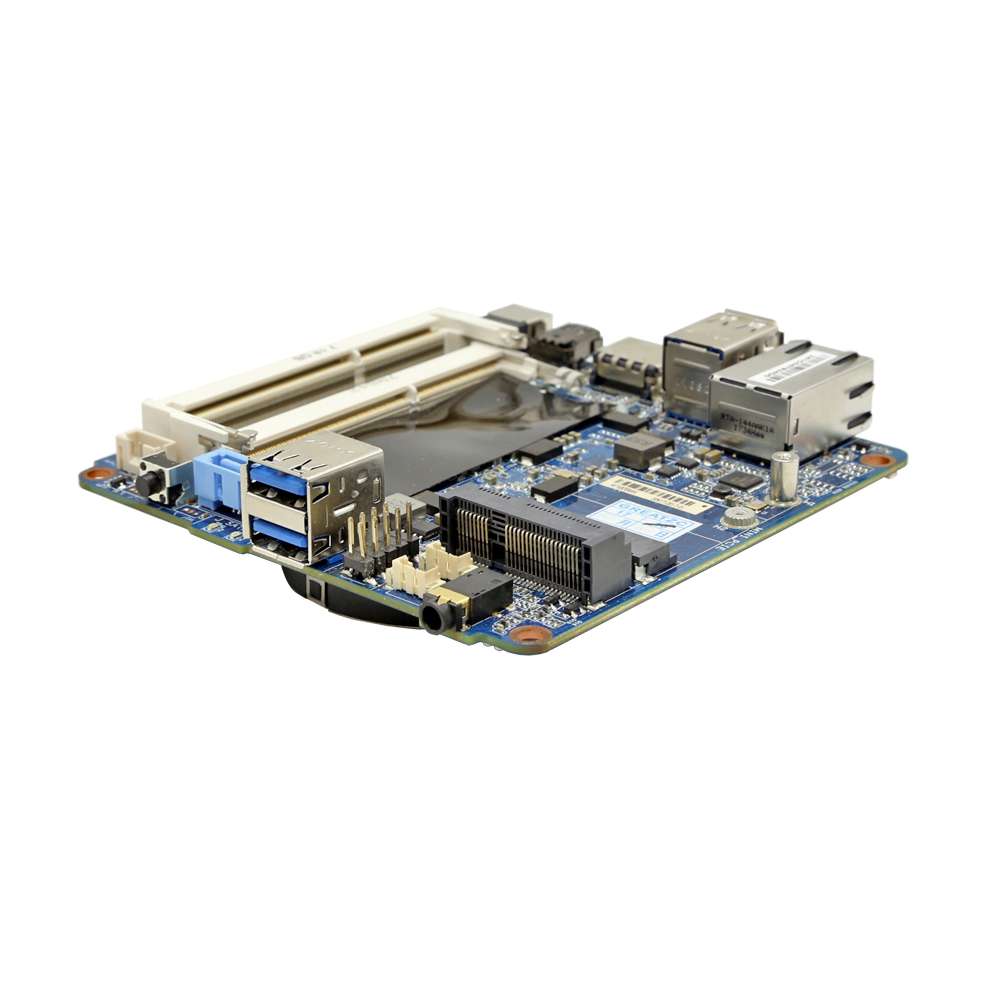

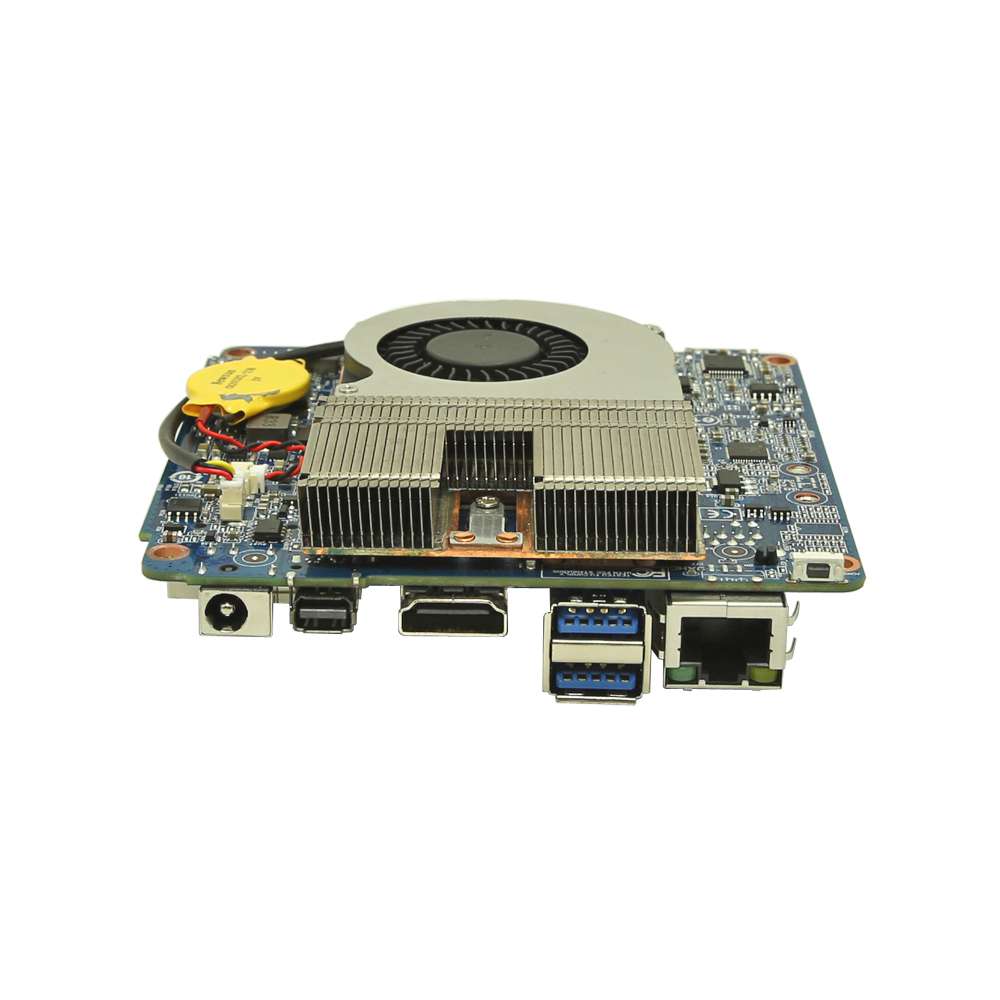

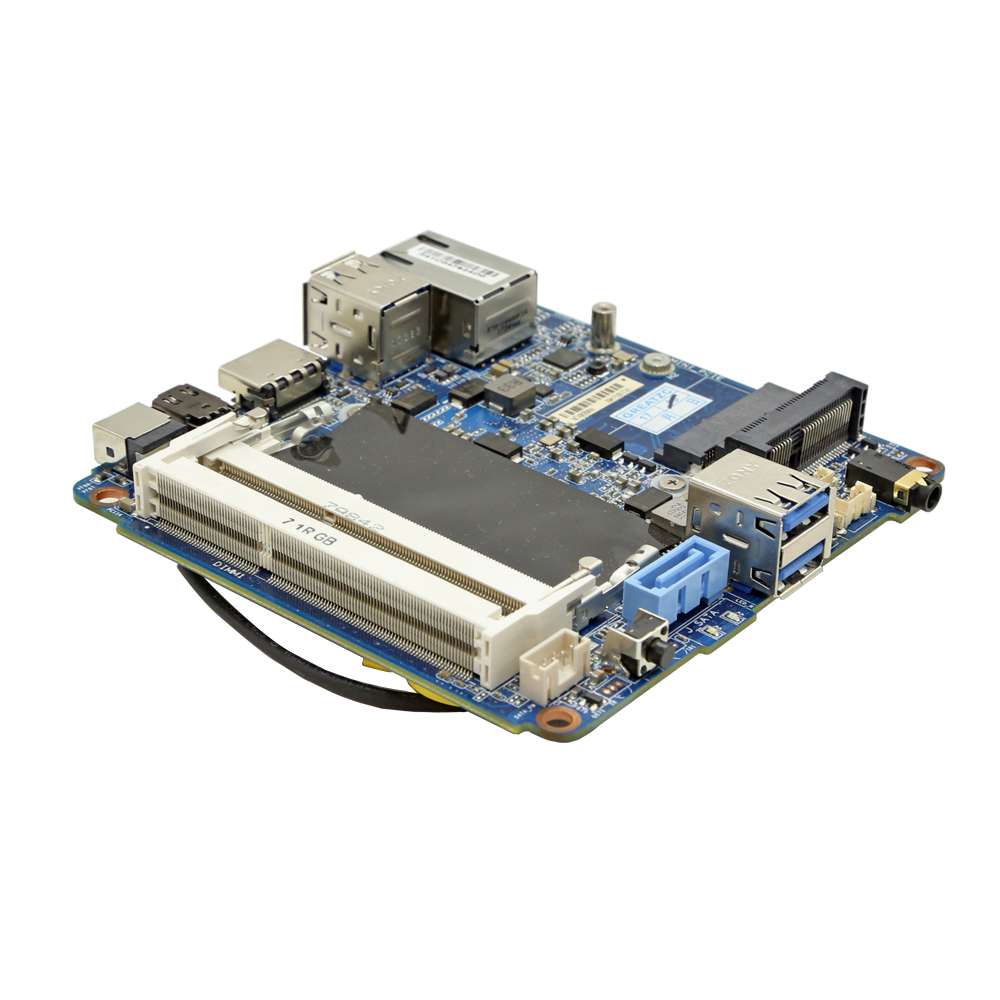

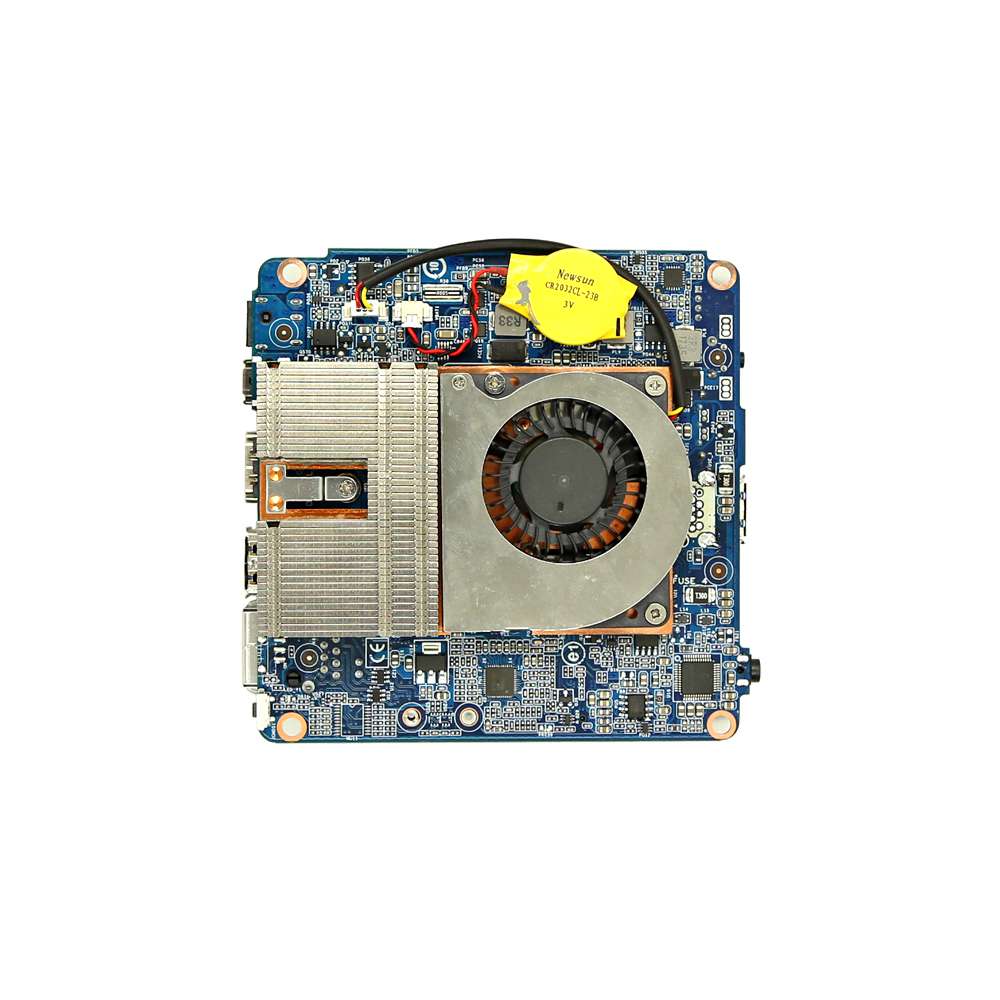

ZC-NI3855U NUC Motherboard With 3855U CPU

Category:NUC Motherboard

Description:ZC-NI3855U Ultra Small Board Onboard Skylake Celeron 3855u CPU,Dual Core 1.6GHz, Intel Graphics HD510,Support 4K.With 1*HDMI,1*Mini DP 1*RJ-45 LAN,1*SATA Slot, 1*MINI PCIE ,1*MINI SATA,3*USB 3.0,2*USB 2.0,DC 12V-19V

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-NI3855U Ultra Small Board Onboard Skylake Celeron 3855u CPU,Dual Core 1.6GHz,

Intel Graphics HD510,Support 4K.With 1*HDMI,1*Mini DP 1*RJ-45 LAN,1*SATA Slot,

1*MINI PCIE ,1*MINI SATA,3*USB 3.0,2*USB 2.0,DC 12V-19V



Main Features:

1. Onboard Processor Intel Skylake Celeron 3855u CPU,TDP 15W

2. INTEL HD510 Graphics,Support 4K

3. With MINI SATA,MINI PCIE,Support SSD,WIFI

4. With 1*HDMI,1*Mini DP,Support Double Display

5. DC 12V-19V Power Supply, Can be Used to More Cases

6. Ultra Small,Dimensions is only 104*104mm,Height 30mm


ZC-NI3855U Motherboard Specification

CPU(Default)

INTEL 6th Skylake Celeron 3855U

Dual Core 2 Thread 1.6GHz

2MB SmartCache

TDP only 15W

CPU(Customize)

6th Gen Skylake i3-6100u,i5-6200u,i7-6500u

7th Gen Kabylake i3-7100u,i5-7200u,i7-7500u

RAM

2*SO-DIMM DDR4, MAX 32GB

Graphics Card

INTEL HD510

Support 4K Playing

SATA

1*SATA Slot

Audio card

Realtek ALC662

Network Card

1*Realtek 8111F,Gigabit

Display

1*HDMI

1*Mini DP

Expansion Slot

1*MINI SATA

1*MINI PCI-E

Front Panel I/O

1*Power Button

1*USB 3.0

1*Audio

 Rear Panel I/O

2*USB 3.0

1*RJ-45

1*HDMI

1*Mini DP

1*DC Jack

 Internal I/O

USB1(4Pins)

USB2(4Pins)

1*F-PANEL1(9PINS)

1*SATA 3.0 Slot

1*SYS-FAN1 PWR(4PINS)

1*MINI SATA

1*MINI PCI-E

Power Supply

12V-19V DC

Size

104*104mm,Height 30mm
