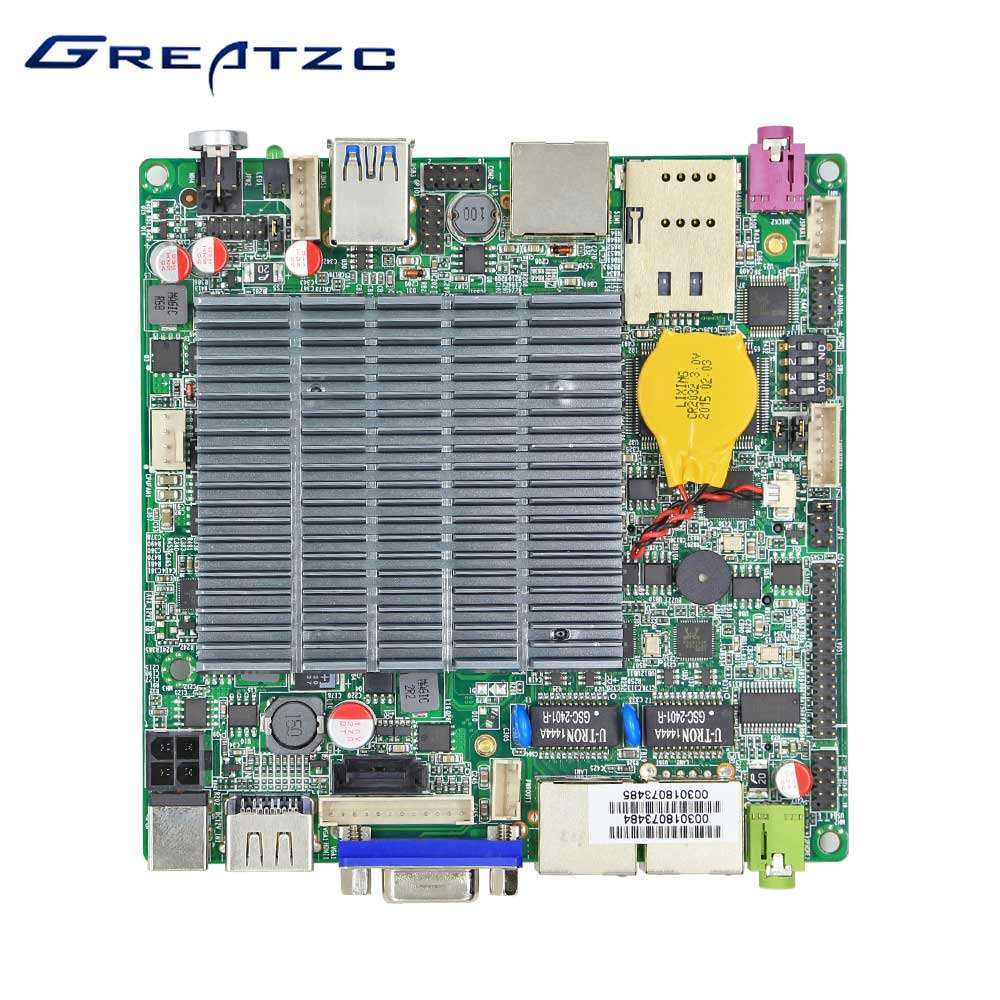

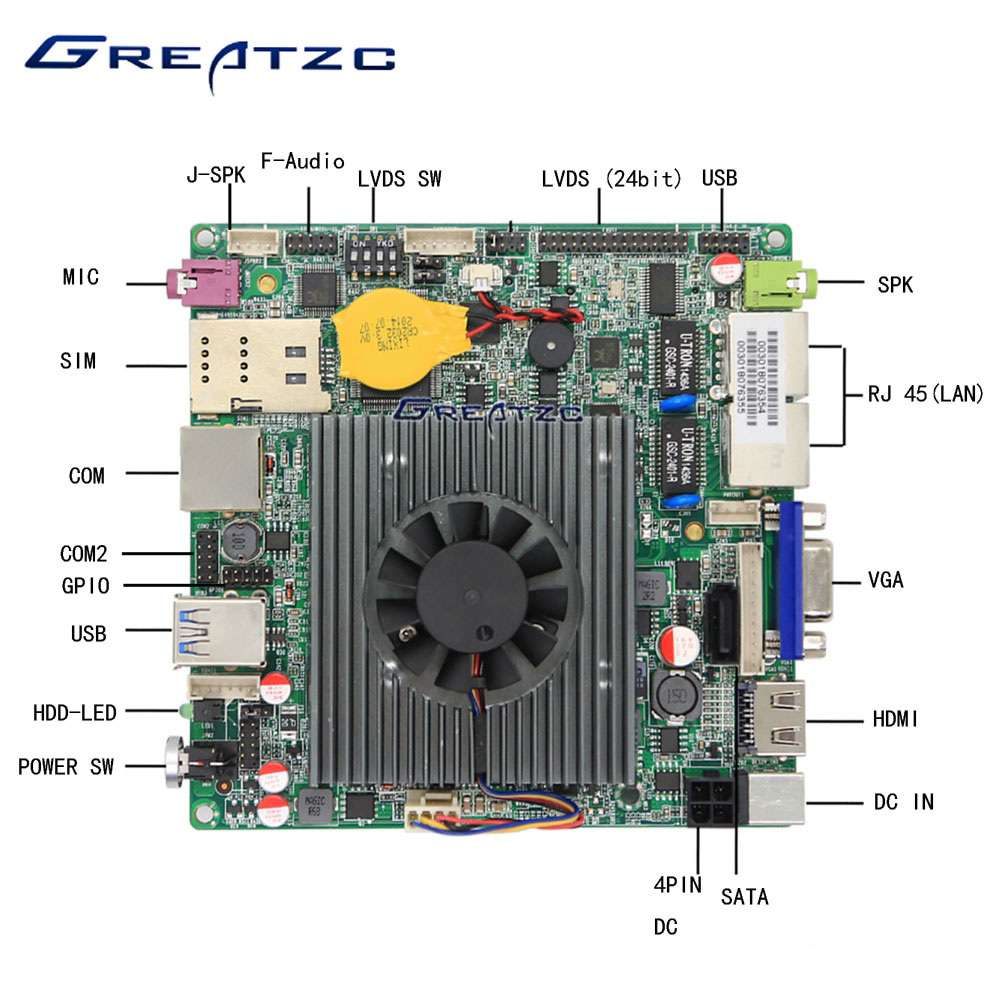

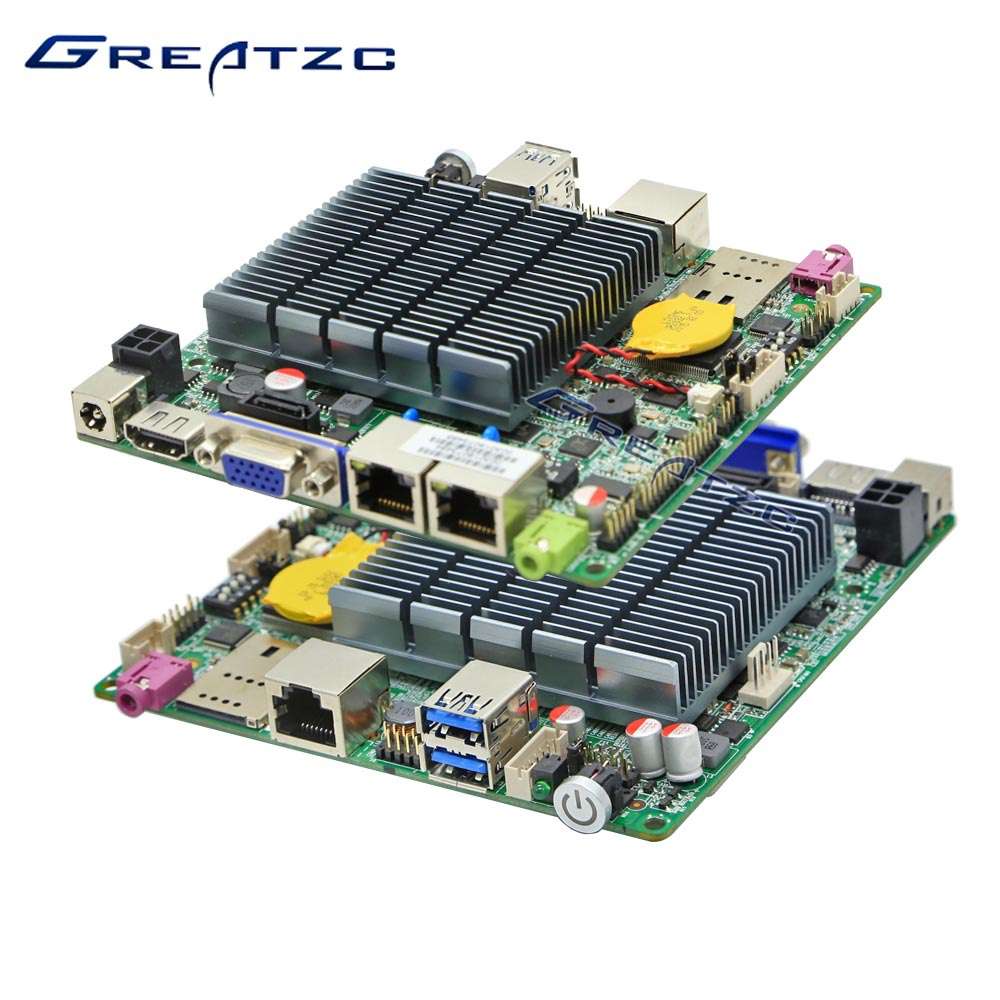

ZC-N19DL Nano Motherboard Dual LAN Industrial Grade

Category:Nano Motherboard

Description:Main Features: 1.Onboard INTEL Bay Trail-D Celeron J1900,TDP only 10W 2.Quad-Core 4 Threads 2GHz,Turbo to 2.42GHz 3.With VGA,HDMI and Double 8Bit LVDS Display 4.Support 1*SO-DIMM DDR3L 1600MHz 5.With 1*Mini PCI-E, 1*SIM Slot 6.With 1*MINI SATA,Full Size,Supp...

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-N19DL Nano-ITX Bay Trail Motherboard,Bay Trail Celeron J1900,TDP only 10W

Quad-Core 4 Threads 2GHz,Turbo to 2.42GHz,1*SO-DIMM DDR3L 1600MHz

1*MINI PCI-E,1*Mini SATA,1*SIM Slot,DC12V,12*12cm Nano-ITX



Main Features:

1.Onboard INTEL Bay Trail-D Celeron J1900,TDP only 10W

2.Quad-Core 4 Threads 2GHz,Turbo to 2.42GHz

3.With VGA,HDMI and Double 8Bit LVDS Display

4.Support 1*SO-DIMM DDR3L 1600MHz

5.With 1*Mini PCI-E, 1*SIM Slot

6.With 1*MINI SATA,Full Size,Support SSD


ZC-N19DL Nano-ITX Motherboard

CPU

INTEL Bay Trail-D Celeron J1900

Quad-Core 4 Threads 2GHz,Turbo to 2.42GHz

2MB L2 Cache

TDP only 10W

RAM

1*SO-DIMM DDR3L 1600MHz

Graphics Card

Intel HD,Support 1080P

Storage

1*SATA Slot

1*Msata Slot,Support SSD

Audio card

Realtek ALC662

Network Card

2*RTL 8111F Gigabit Network Card

Expansion Slot

1*MINI PCI-E

1*MINI SATA

1*SIM Card Slot

Display

1*VGA

1*HDMI

1*LVDS(Support Double Channel 24Bit)

Front Panel I/O

1*Power Button

1*USB 3.0

1*USB 2.0

1*Console Port

1*MIC IN

1*SIM Card Slot

1*HDD LED

 Rear Panel I/O

12V DC Port

2*RJ-45 Lan

1*VGA

1*HDMI

1*Line Out

 Internal I/O

1*SATA

1*JVGA PINS

1*POWER OUT1

1*USB 2.0 PINS(Support 2*USB Ports)

1*LVDS(30PINS,Support Double 24Bit)

1*INVERTER

1*F-AUDIO

1*JSPEAKER

1*JPIO(7PINS)

1*Keyboard&Mouse(6PINS)

1*COM(9PINS)

1*CPU FAN(4PINS)

1*DC_ATX(4PINS)

1*Mini SATA

1*Mini PCI-E

1*SO-DIMM DDR3L 1600MHz

Power Supply

DC 12V

Size

Nano-ITX 12cmx12cm.

Height:2.8cm
