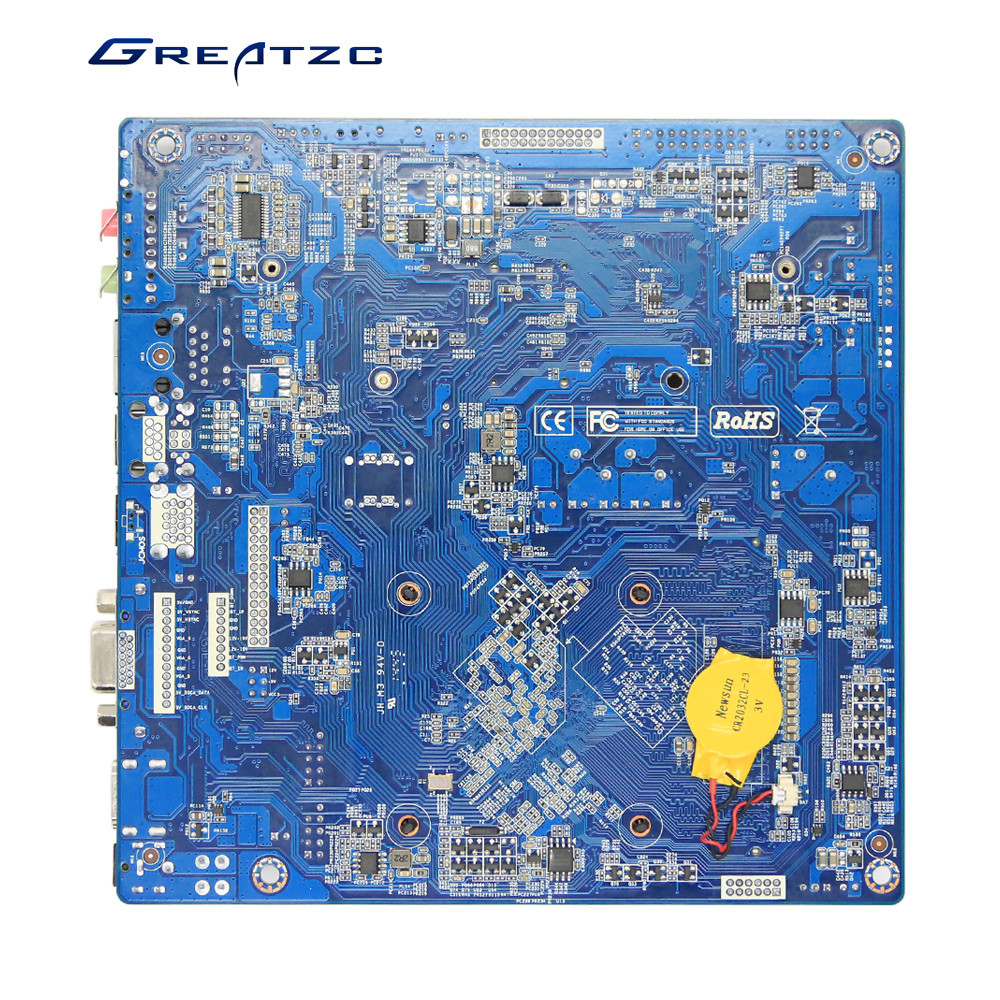

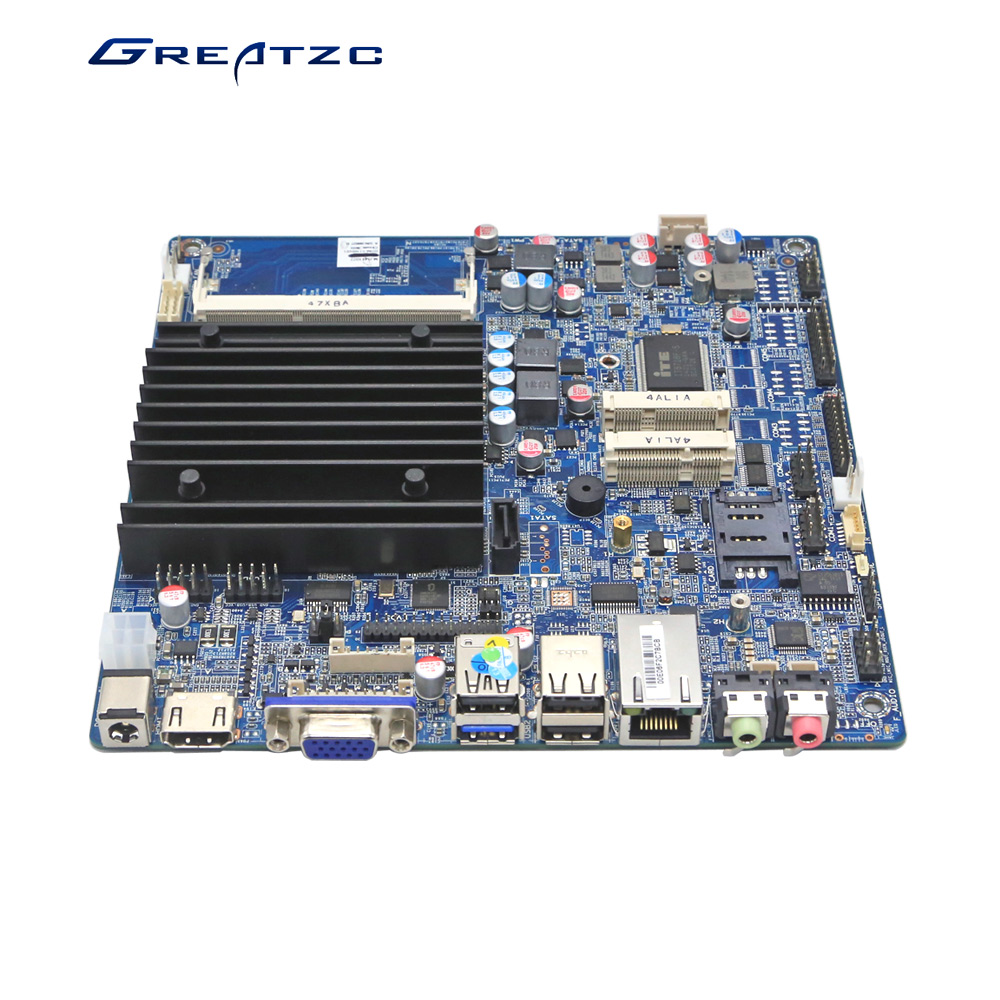

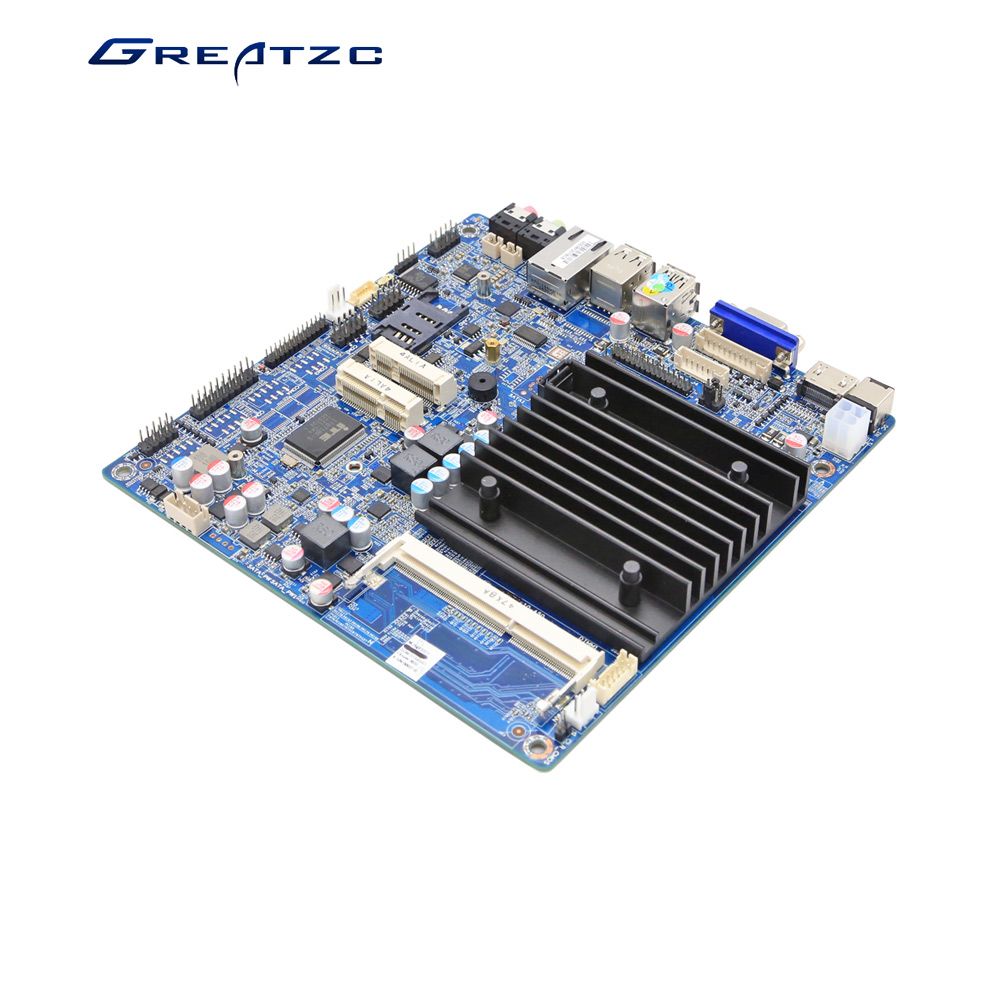

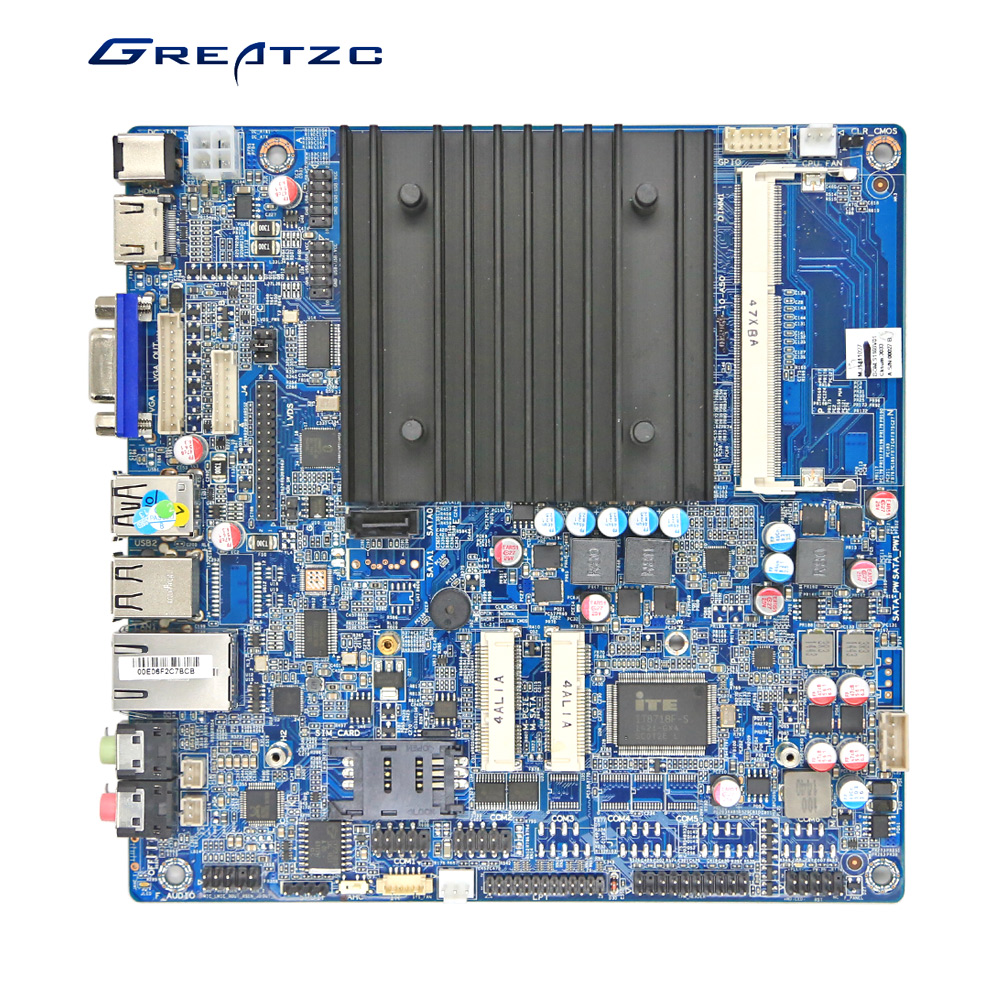

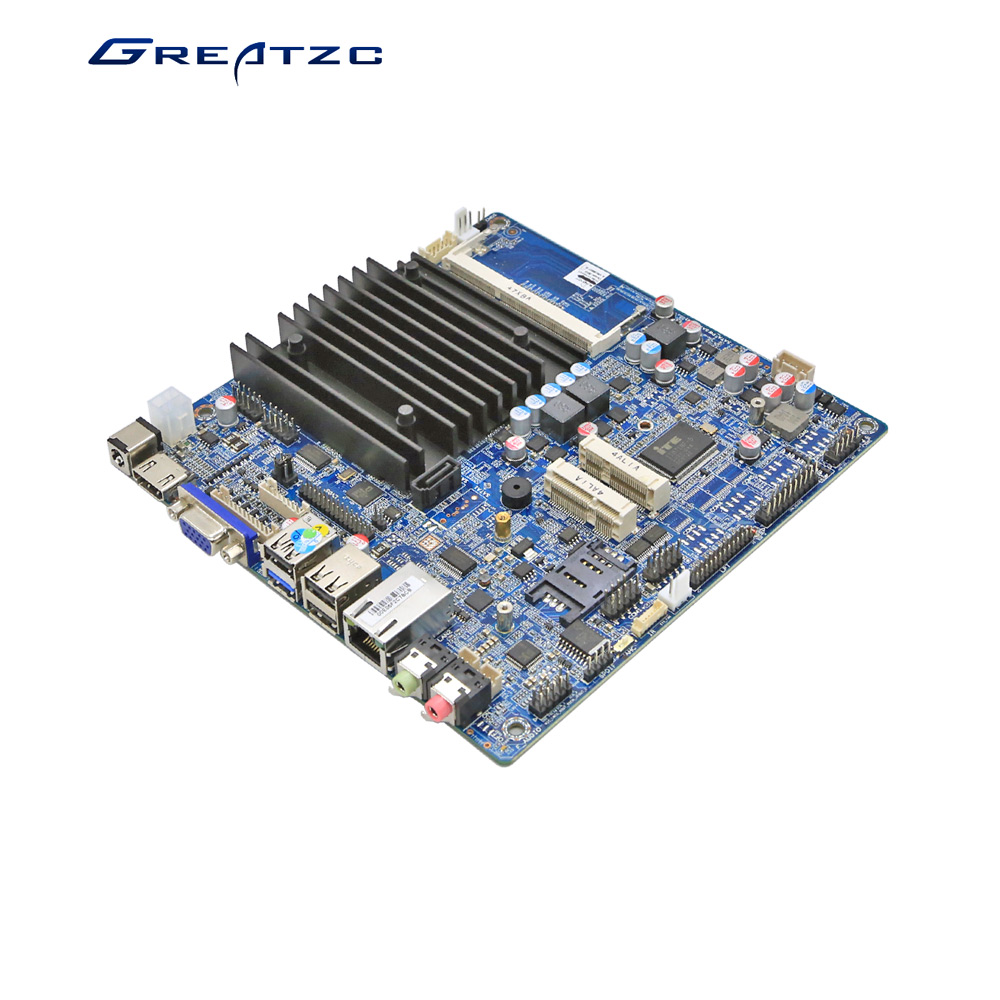

ZC-BT18V J1800 Fanless Industrial Computer Mini IT Motherboard

Category:Mini Itx Motherboard

Description:ZC-BT18V Fanless Bay Trail Motherboard,Bay Trail Celeron J1800,TDP only 10W Dual-Core 2 Threads 2.41GHz,Turbo to 2.58GHz,1*SO-DIMM DDR3L 1333MHz 1*MINI PCI-E,1*Mini SATA,1*SIM Slot,DC12V-19V,Fanless Design

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-BT18V Fanless Bay Trail Motherboard,Bay Trail Celeron J1800,TDP only 10W

Dual-Core 2 Threads 2.41GHz,Turbo to 2.58GHz,1*SO-DIMM DDR3L 1333MHz

1*MINI PCI-E,1*Mini SATA,1*SIM Slot,DC12V-19V,Fanless Design



Main Features:

1.Onboard INTEL Bay Trail-D Celeron J1800,TDP only 10W

2.Dual Core 2 Threads 2.41GHz,Turbo to 2.58GHz

3.With VGA,HDMI,LVDS Onboard

4.Support 1*SO-DIMM DDR3L 1333MHz

5.With 1*Mini PCI-E, 1*SIM Slot,Support WIFI or 3G module

6.With 1*MINI SATA,Full Size,Support SSD

7.DC 12V-19V Power Supply,Wide Range Input

8.Fanless Design,No Noise


ZC-BT18V Bay Trail Fanless Motherboard

CPU

INTEL Bay Trail Celeron J1800

Dual Core 2 Threads 2.41GHz

Turbo to 2.58GHz

1MB L2 Cache

TDP only 10W

RAM

1*SO-DIMM DDR3L 1333MHz

Graphics Card

Intel HD,Support 1080P

Storage

1*SATA Slot

1*Msata Slot,Support SSD

Audio card

Realtek ALC662

Network Card

1*Gigabit Network Card

Expansion Slot

1*MINI PCI-E  Support WIFI or 3G module

1*MINI SATA  Support SSD

1*SIM Card Slot

Display

1*VGA

1*HDMI

1*LVDS

 Rear Panel I/O

12V-19V DC Port

3*USB 2.0

1*USB2.0

1*RJ-45

1*VGA

1*HDMI

1*Mic In

1*Line Out

 Internal I/O

1*F-AUDIO(9PINS)

1*SPDIF

1*LPT

4*Internal USB 2.0

1*COM1(9PINS)

1*COM2(9PINS)

COM3-6 Can Customize

1*F-Panel(9PINS)

1*LVDS

1*TPM-Header

1*SYS_FAN(3PINS)

1*CPU-FAN(3PINS)

1*SATA Slot

1*SATA_PWR(4PINS)

1*JVGA(12PINS)

1*SIM Card Slot

1*CLR_CMOS(2PINS)

1*GPIO(12PINS)

1*Mini SATA(Full Size)

1*Mini PCI-E(Full&Half Size)

Power Supply

12V-19V DC

Size

Mini ITX 17*17CM
