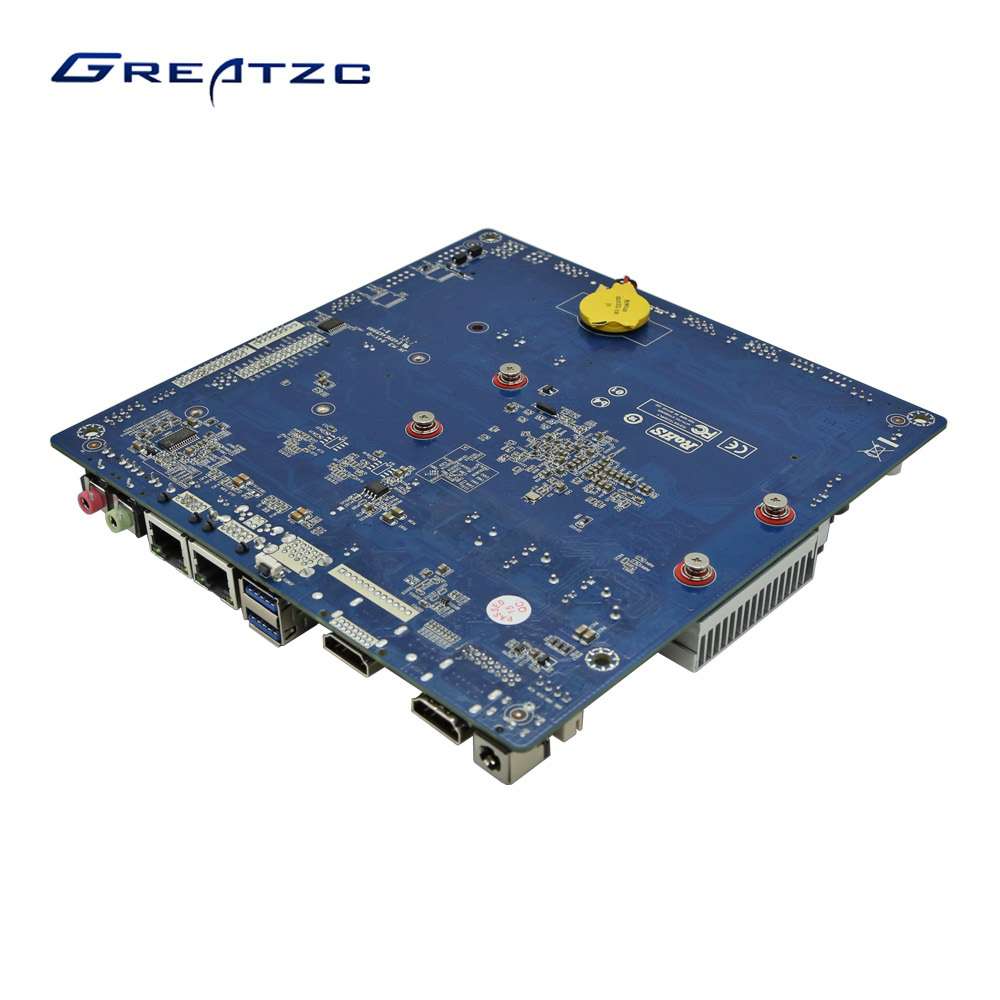

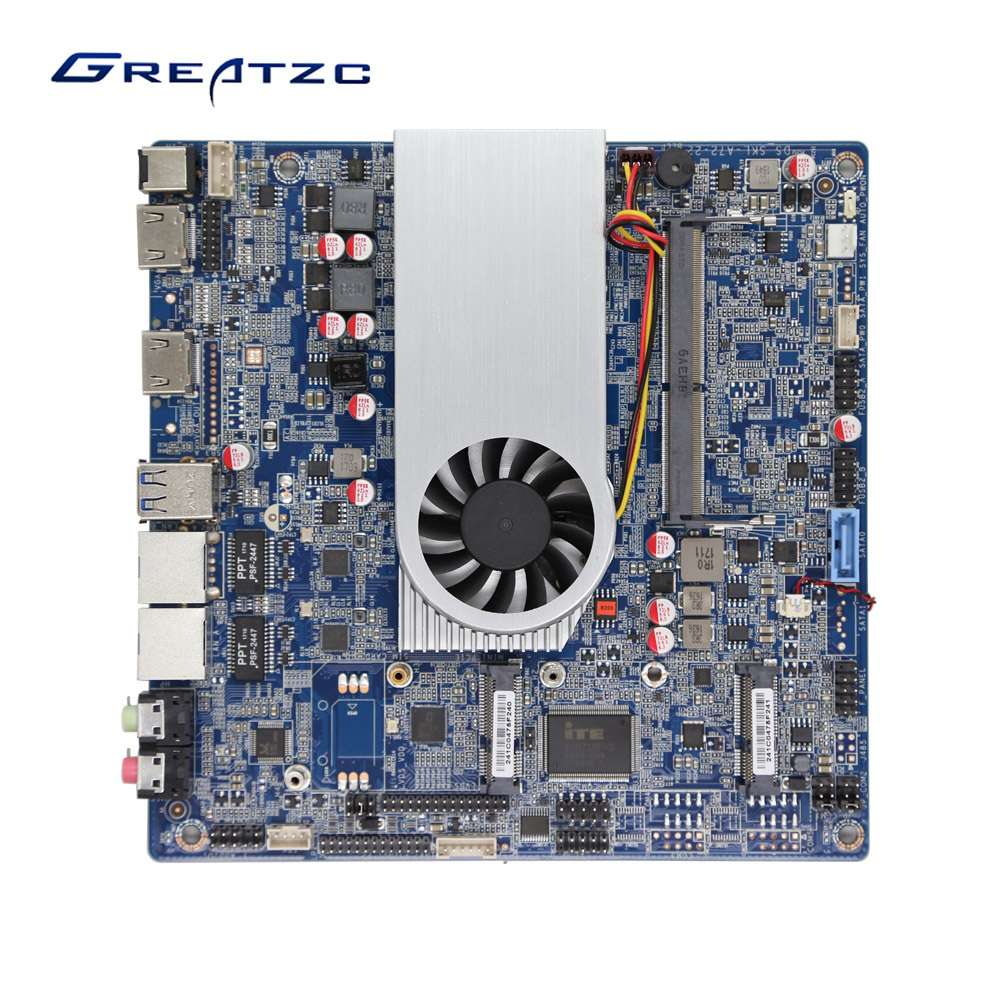

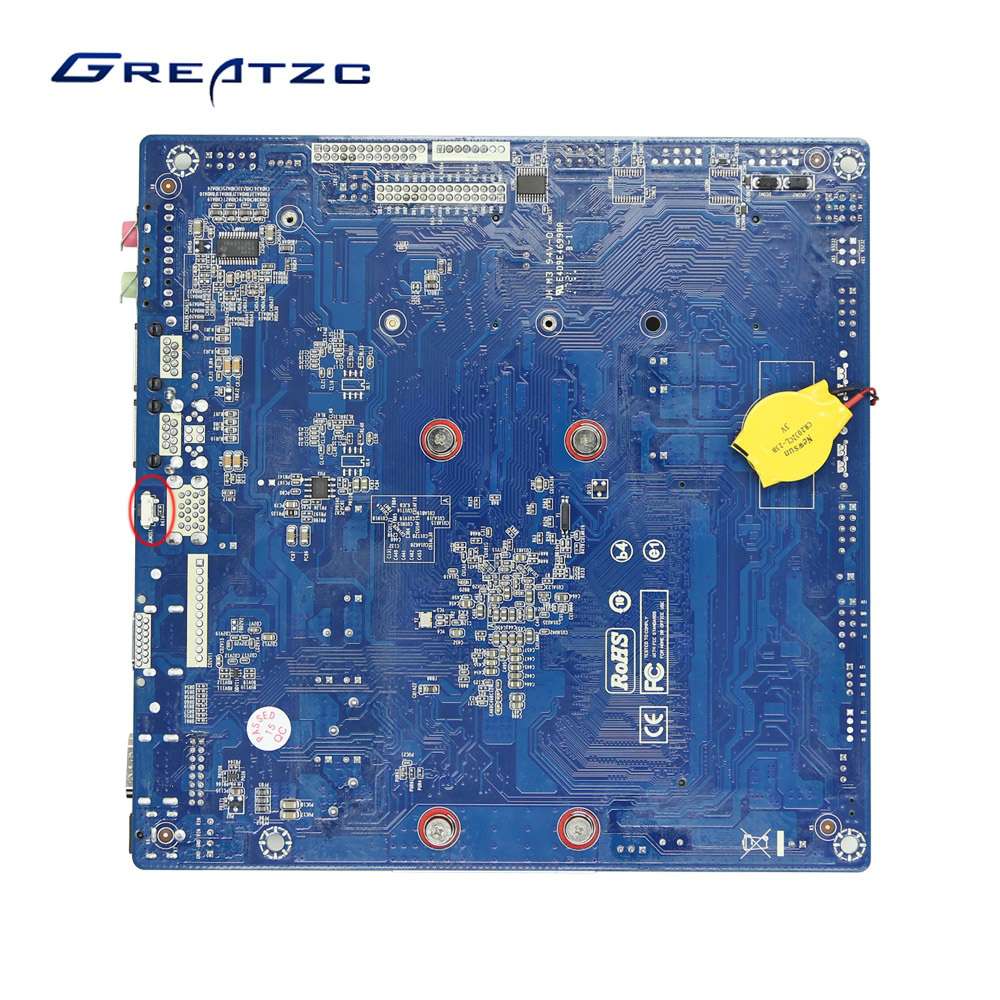

ZC-T6200DL Dual LAN Mini ITX Motherboard Support 4K With CPU Core I5 6200U

Category:Mini Itx Motherboard

Description:ZC-T6200DL Mini ITX Motherboard With Intel 6th Skylake i5--6200U CPU, Dual Core 2.3GHz,Turbo Boost 2.8GHz,INTEL HD520,With 2*HDMI,LVDS, 2*RJ-45 LAN, 1*SATA Slot, 1*MINI PCIE ,1*MINI SATA,DC 12V-19V, Support Total 6*USB,Support 4K.

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-T6200DL Mini ITX Motherboard With Intel 6th Skylake i5--6200U CPU,

Dual Core 2.3GHz,Turbo Boost 2.8GHz,INTEL HD520,With 2*HDMI,LVDS,

2*RJ-45 LAN, 1*SATA Slot, 1*MINI PCIE ,1*MINI SATA,DC 12V-19V,

Support Total 6*USB,Support 4K.



Main Features:

1.Onboard Processor 6th Skylake i5-6200U Dual Core 2.3GHz,TDP 15W

2.INTEL HD520, Graphics Max Dynamic Frequency 1 GHz,Support 4K

3.With MINI SATA,MINI PCIE,Support SSD,WIFI

4.With 2*HDMI,LVDS,Support Double Display

5.DC 12V-19V Power Supply, Can be Used to More Cases

6.MINI ITX Motherboard (17*17),Suitable for Majority Cases


ZC-T6200DL Motherboard Specification

CPU

INTEL 6th Skylake I5-6200U

Dual Core 4 Thread 2.3GHz

Turbo Boost 2.8GHz

3MB L3 Cache

TDP only 15W

RAM

1*SO-DIMM DDR4, MAX 16GB

Graphics Card

INTEL HD520,Support 4K Playing

Graphics Max Dynamic Frequency 1 GHz

SATA

1*SATA Slot

Audio card

Realtek ALC662

Network Card

2*Realtek 8111F

1000Mbp/s Network Card

Display

2*HDMI

1*LVDS

LVDS

1*Double Channel 8Bit/24Bit LVDS

Expansion Slot

1*MINI SATA

1*MINI PCI-E

 Rear Panel I/O

2*USB 3.0

2*RJ-45

2*HDMI

1*DC Jack

1*Speaker

1*MIC IN

 Internal I/O

1*F-USB(Support 2*USB 2.0 Ports)

1*F-USB(Support 2*USB 2.0 Ports)

1*F-PANEL1(9PINS)

1*F-AUDIO(9PINS)
2*COM PINS(9PINS)

1*SATA 3.0 Slots

1*SYS-FAN1 PWR(3PINS)

1*CPU FAN PWR(3PINS)

1*30PINS LVDS

1*LVDS Backlight(6PINS)

1*LPT

1*DC ATX(4PINS)

1*MINI SATA

1*MINI PCI-E

Power Supply

12V-19V DC-In

4PIN DC-ATX

Size

MINI ITX(17*17)
