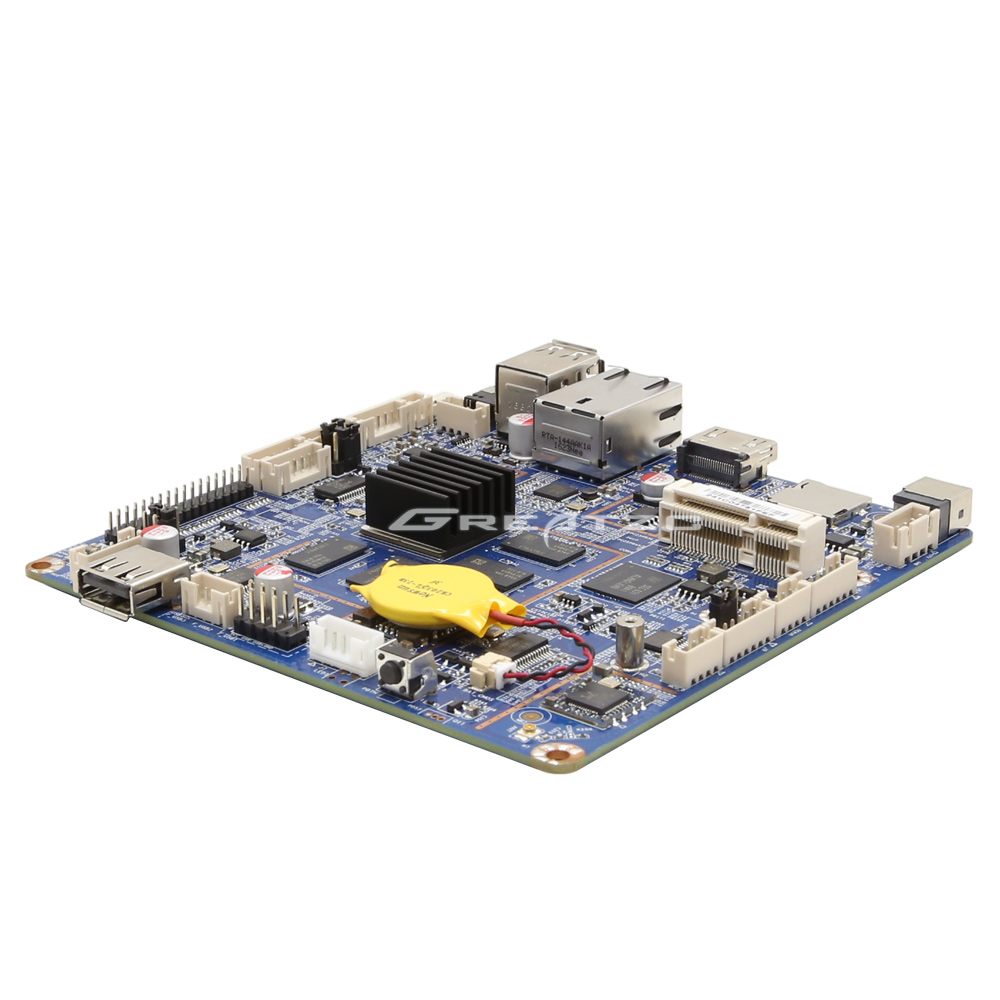

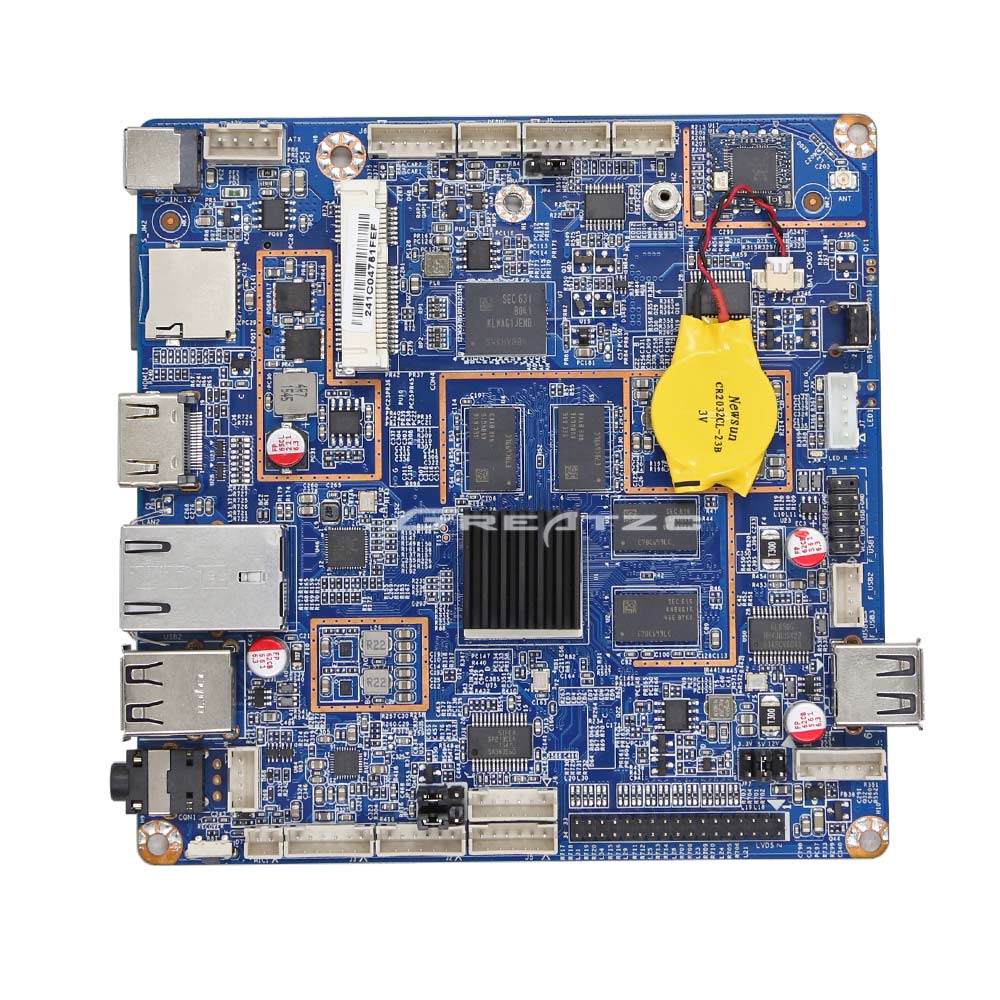

ZC-RK3288 Android Mainboard with Android 5.1

Category:Android Boards/PC

Description:Main Features: 1. Size only 12*12CM, Saving space, easy installation, easy maintenance,widely application. 2. With low power consumption, small heat, no fan cooling, quiet and dustproof. 3. Onboard Double Channel 8/24Bit LVDS, Support 1920x1080. 4. Onboard Gig...

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-RK3288 ARM Android Motherboard, With ARM Cortex-A17 Quad-core RK3288 CPU,

Quad Core 1.80GHz, ARM Mali-T764,Android 5.1 Operation System, Onboard DDR3 2GB

Memory,16GB NAND FLASH Storage,HDMI + LVDS Display Output


Main Features:

1. Size only 12*12CM, Saving space, easy installation, easy maintenance,widely application.

2. With low power consumption, small heat, no fan cooling, quiet and dustproof.

3. Onboard Double Channel 8/24Bit LVDS, Support 1920x1080.

4. Onboard Gigabit LAN and WIFI&Bluetooth Module;Mini PCI-E For 3G/4G.

5. Support IR Control and Digital Input Control, built-in RTC clock,Timed Power ON/OFF.

6. With HDMI + LVDS Ports,Support Double Display.

7. Built-in amplifier pin, can connect 3W/5 W, 8 ohm loudspeaker.

8. Onboard TF Card Slot, Support Max 32 GB Extension Storage.

9. Onboard GPIO,I2C,COM,MINI PCI-E, SIM Slot,IR Pins, rich interface.

10.Widely Use in Advertising Display,Public transportation like BUS/Metro,Elevator media,

All In One PC,Smart TV,School,Bank,Hospital,Industry etc.


ZC-RK3288 Nano-ITX Motherboard

CPU

RockChip RK3288

ARM ® Cortex™-A17

Quad-core 1.80GHz

RAM

Onboard 2GB DDR3 Memory

Graphics Card

Mali-T764,OpenGL ES1.1/2.0/3.

Open VG1.1,OpenCL,Directx11

Storage

Onboard 16GB eMMC

(8GB/32GB can customize)

TF Card Slot support Max 32 GB

Audio card

Realtek ALC662

Network Card

Onboard Gigabit Network Card

Onboard WIFI &Bluetooth

OS

Android 5.1

Expansion Slot

1*MINI PCI-E

1*MINI SATA

1*SIM Card Slot

Display

1*HDMI

1*LVDS(Double Changel 8/24 Bit,1920 x1080)

External I/O



3*USB 2.0(1*OTG)

1*DC IN

1*HDMI

1*RJ-45 Lan

1*TF Card Slot

1*Speaker

1*Power Button

 Internal I/O

1*30Pin LVDS port

1*6Pin LVDS Power port

1*2Pin MIC-In port

1*4Pin Speaker port

1*6Pin COM port (RS232)

1*6pin COM port(TTL)

3*USB2.0

1*Mini-PCIE

1*6pin IR Port

1*1x4 Pin ATX 12V

1*6Pin F-Panel

2*6 Pin I2C Port

1*6Pin MCU Burn Slot

Power Supply

DC 12V

Size

Nano-ITX 12cmx12cm.

RTC

3.3V RTC Wake Up

Firmware

Power,Burning,Recover

OS

Android 5.1
