ZC-U36H816L Firewall Appliance With 6 Gigabit Network Card

Category:4LAN/ 6LAN/ 8LAN

Description:ZC-U36H816L Network Security Server Firewall PC 1U Rack-Mounted Case With 6*WG82583V Card,2*USB,1*VGA,2*SO DIMM DDR3, Support LGA1150 CPU Haswell 4th Core I7/I5/I3,Pentium,Celeron

Service Hotline:+86-0755-25872280

InquirySkype

Description

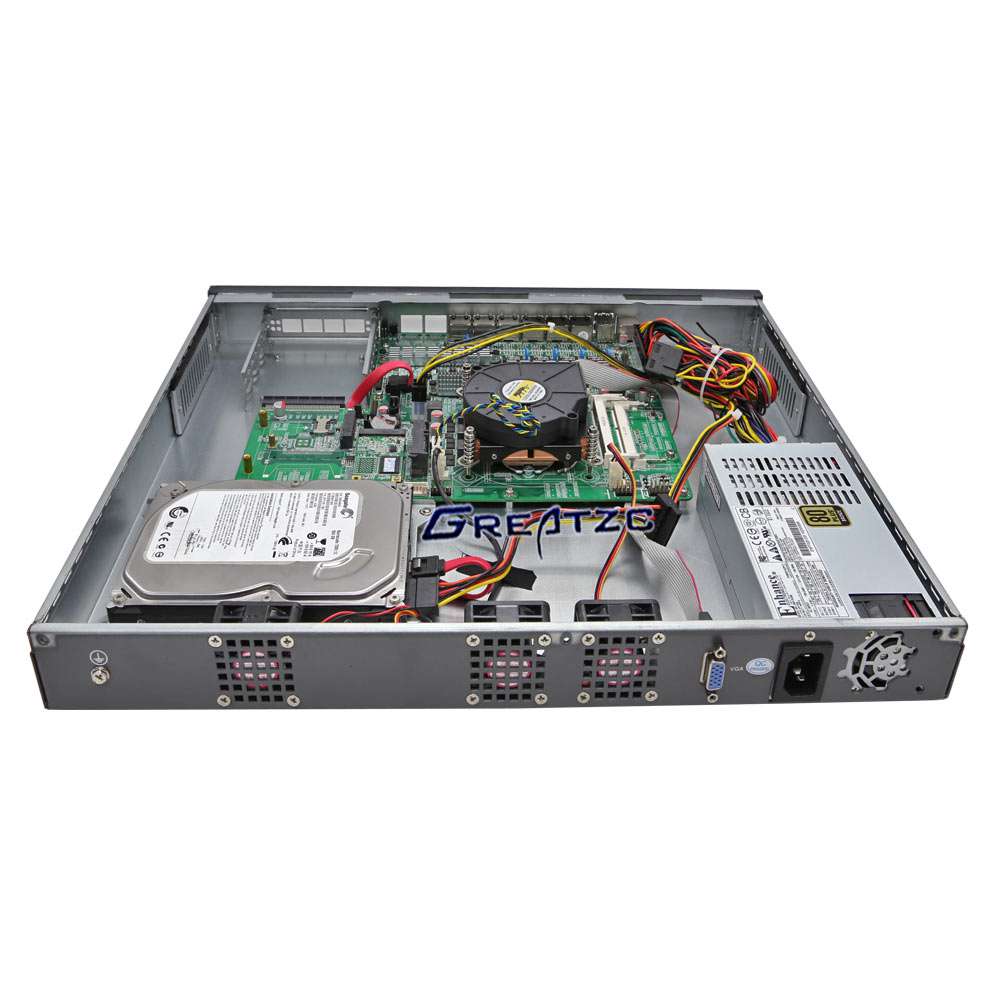

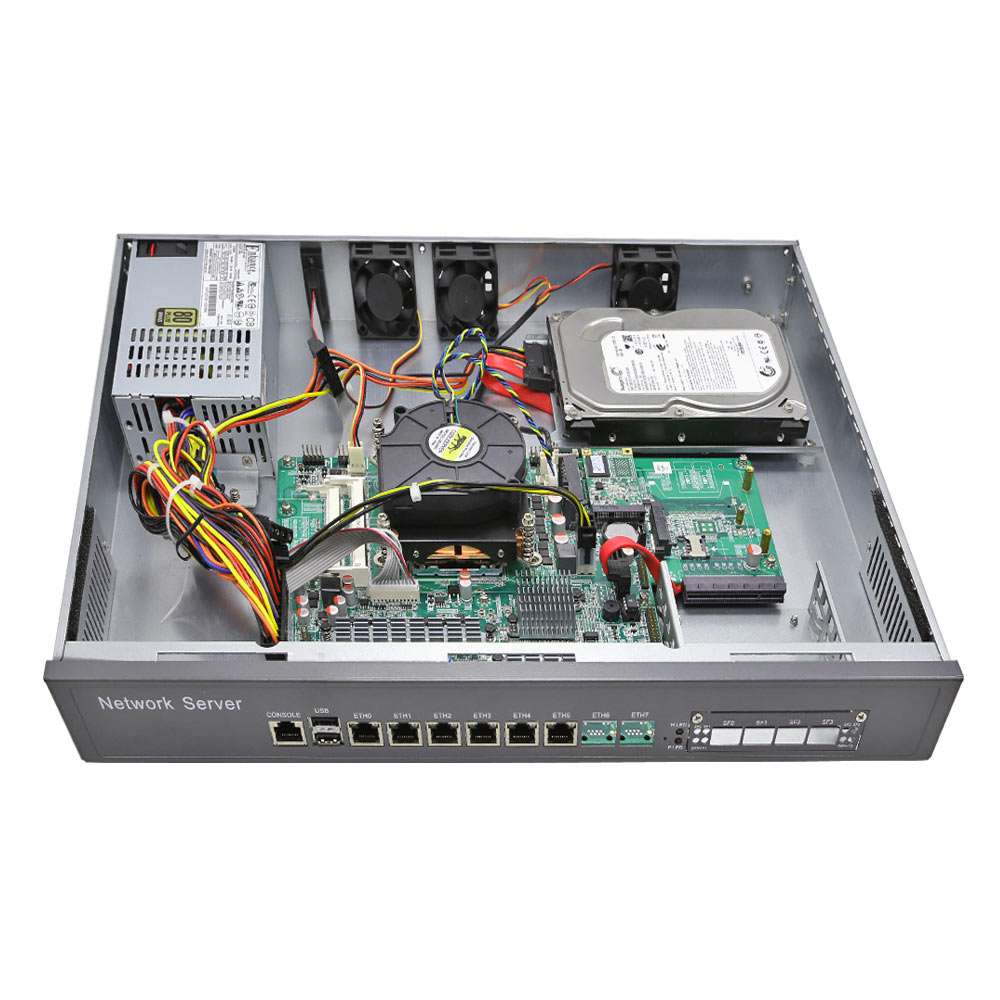

ZC-U36H816L Network Security Server Firewall PC 1U Rack-Mounted Case

With 6*WG82583V Card,2*USB,1*VGA,2*SO DIMM DDR3,

Support LGA1150 CPU Haswell 4th Core I7/I5/I3,Pentium,Celeron



Main Features:

1.INTEL H81 Chipset,LGA 1150 Socket,Haswell 4th Core I7/I5/I3,Pentium,Celeron.

2.Integrated 6*WG82583V Gigabit Card,Very Stable and Reliable,WIFI Optional.

3.Standard 1U Case,Size is 482*360*44.5mm,Adaptive to Kinds of Cabinet.

4.With Internal Mini PCI-E and SIM Slots,3G/4G/WIFI Optional.

5.With PCI-E 8X,and 4*SF Slots on Case,Optical Fiber Optional.

6.For Storage,Support SATA 2.5 and SATA 3.5,Also mSATA SSD.

7.With 250W ATX Power Supply 80Plus,Support 100-240V.

8.Support GPIO Programmable Controlling.


ZC-U36H816L Specification

CPU

INTEL LGA 1150 Socket

Support Haswell 4th Core I7/I5/I3,Pentium,Celeron

Chipset

Intel H81

RAM

2*SO-DIMM DDR3 1600/1333/1066

Support Max 16GB

Graphics Card

CPU Integrated

Storage

2*SATA Slot

1*mSATA Slot

1*Onboard 2.5inch HDD Slot

Network Card

6*WG82583VGigabit Card

Expansion Slot

1*MINI PCI-E(Full Size,Support WIFI/3G/4G)

1*MINI SATA(Full Size,Support SSD)

1*PCIE X8(Support Optical Fiber Module)

1*SIM Slot

Outside I/O

6*RJ-45 LAN Ports

2*USB 2.0

1*Power Slot

1*Console Port( RJ45 Type)

1*PWR LED,1*HDD LED

1*VGA

1*AC Power Port

4*SF Ports(Need Buy Additional Optical Fiber Module)

Power Supply

ATX Power Supply 250W(100-240V)

Size

482*360*44.5mm
