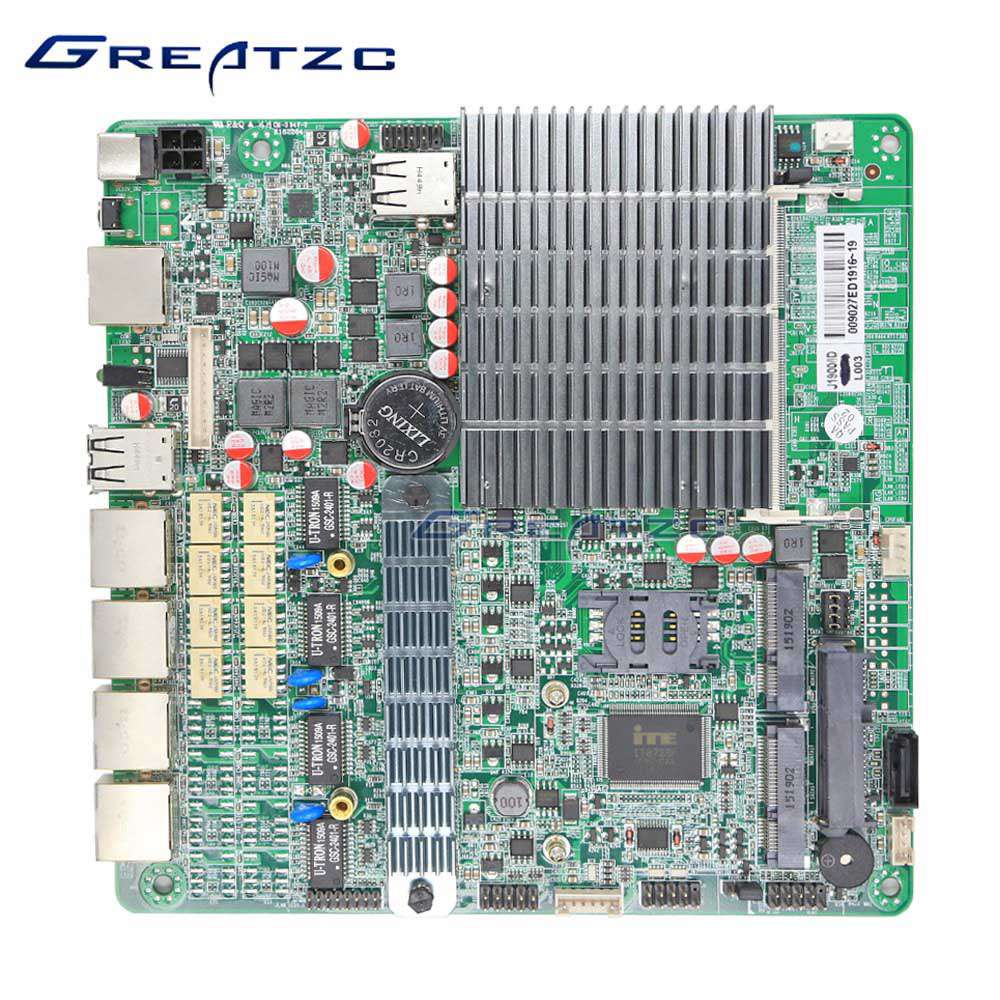

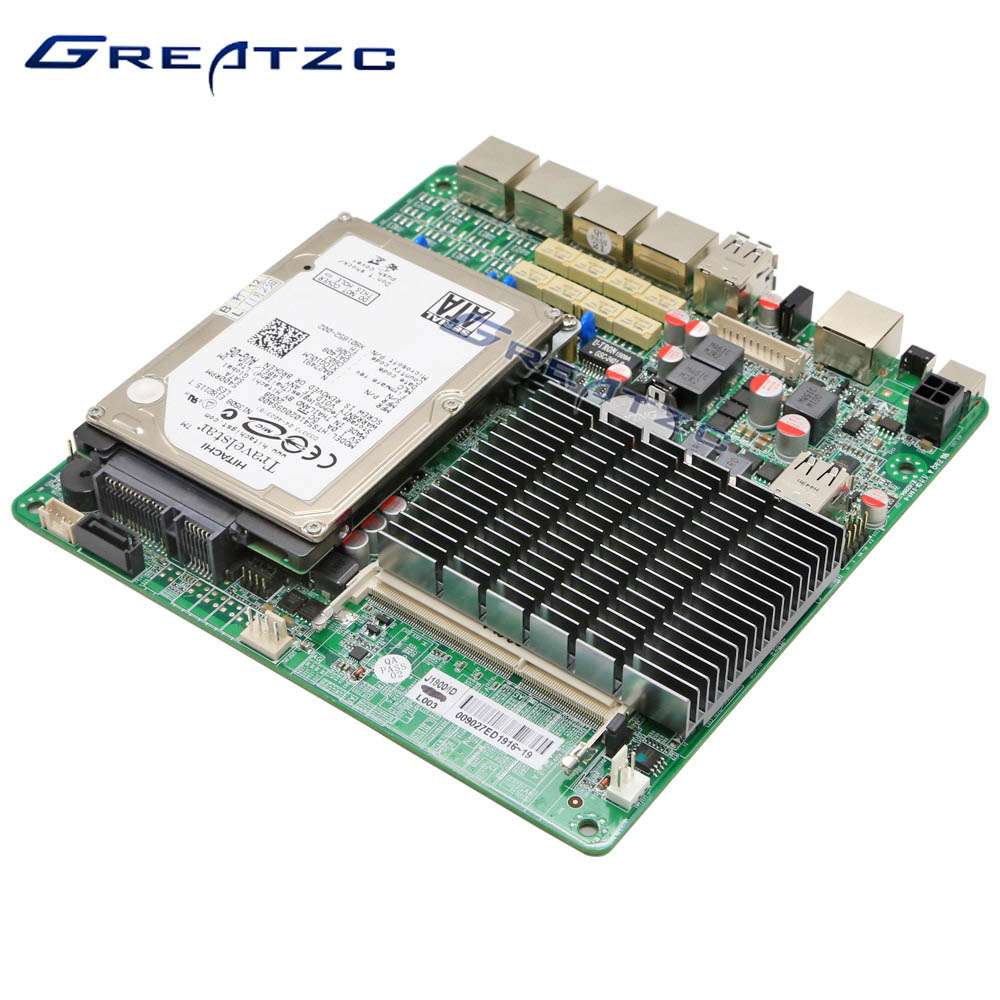

ZC-BT184L Firewall Motherboard 4 Lan Mini Itx

Category:4LAN/ 6LAN/ 8LAN

Description:Main Features: 1.Onboard INTEL Bay Trail-D Celeron J1800,TDP only 10W 2.Dual Core 2 Threads 2.41GHz,Turbo to 2.58GHz 3.Support 1*SO-DIMM DDR3L 1333MHz 4.With 1*Mini PCI-E,1*SIM Slot,Support WIFI or 3G module 5.With 1*MINI SATA,Suppot SSD;1xSATA 2.5inch Port ...

Service Hotline:+86-0755-25872280

InquirySkype

Description

ZC-BT184L MINI ITX 4 LAN Motherboard Onboard CPU J1800,With 4*Intel 82583V

Gigabit Network Card,1*MINI SATA,1*Mini PCI-E,1*SIM Slot



Main Features:

1.Onboard INTEL Bay Trail-D Celeron J1800,TDP only 10W

2.Dual Core 2 Threads 2.41GHz,Turbo to 2.58GHz

3.Support 1*SO-DIMM DDR3L 1333MHz

4.With 1*Mini PCI-E,1*SIM Slot,Support WIFI or 3G module

5.With 1*MINI SATA,Suppot SSD;1xSATA 2.5inch Port

6.DC 12V-19V Power Supply,Wide Range Input

7.With 4*LAN Ports,4*USB Ports

8.Fanless Design,No Noise


ZC-BT184L Motherboard Specification

CPU

INTEL Bay Trai Celeron J1800

Dual Core 2 Threads 2.41GHz

Turbo to 2.58GHz

1MB L2 Cache

TDP only 10W

RAM

1*SO-DIMM DDR3L 1333MHz

Graphics Card

Intel HD,Support 1080P

Onboard SATA

2*SATA Slots

Expansion Slot

1*MINI SATA

1*Mini PCI-E

1*SIM Card Slot

Network Card

4*Intel 82583V Gigabit Card

Rear Panel I/O

1*Power Button

1*DC Port

Power&SATA Lights

2*USB 2.0

1*Console Port( RJ45 Type)

4*RJ-45 LAN Ports

 Internal I/O

1*KB2

1*GPIO

1*COM2

1*JPW

1*JVGA

JLAN-LED1

USB3 Port

USB4 Port

1*SATA 2.5inch Port

1*SATA1

1*SATA Power

1*CPU FAN

1*SYS FAN

1*F_PANEL

1*MINI PCI-E

1*MINI SATA

1*SIM Card Slot

1*DDR3 Slot

1*ATX12V(4PINS)

Power Supply

12V-19V DC

Size

Mini ITX Form Factor(17cm*17cm)
